Rafturi mobile pentru paleti Movirack

Rafturi mobile pentru paleti Movirack

Utilizarea maximă a spațiului. Sistem optim pentru camere frigorifice sau de congelare. Eliminarea coridoarelor individuale de acces.

Acest sistem pe baze mobile permite ca un singur culoar de lucru să fie valabil pentru accesarea mai multor rafturi.

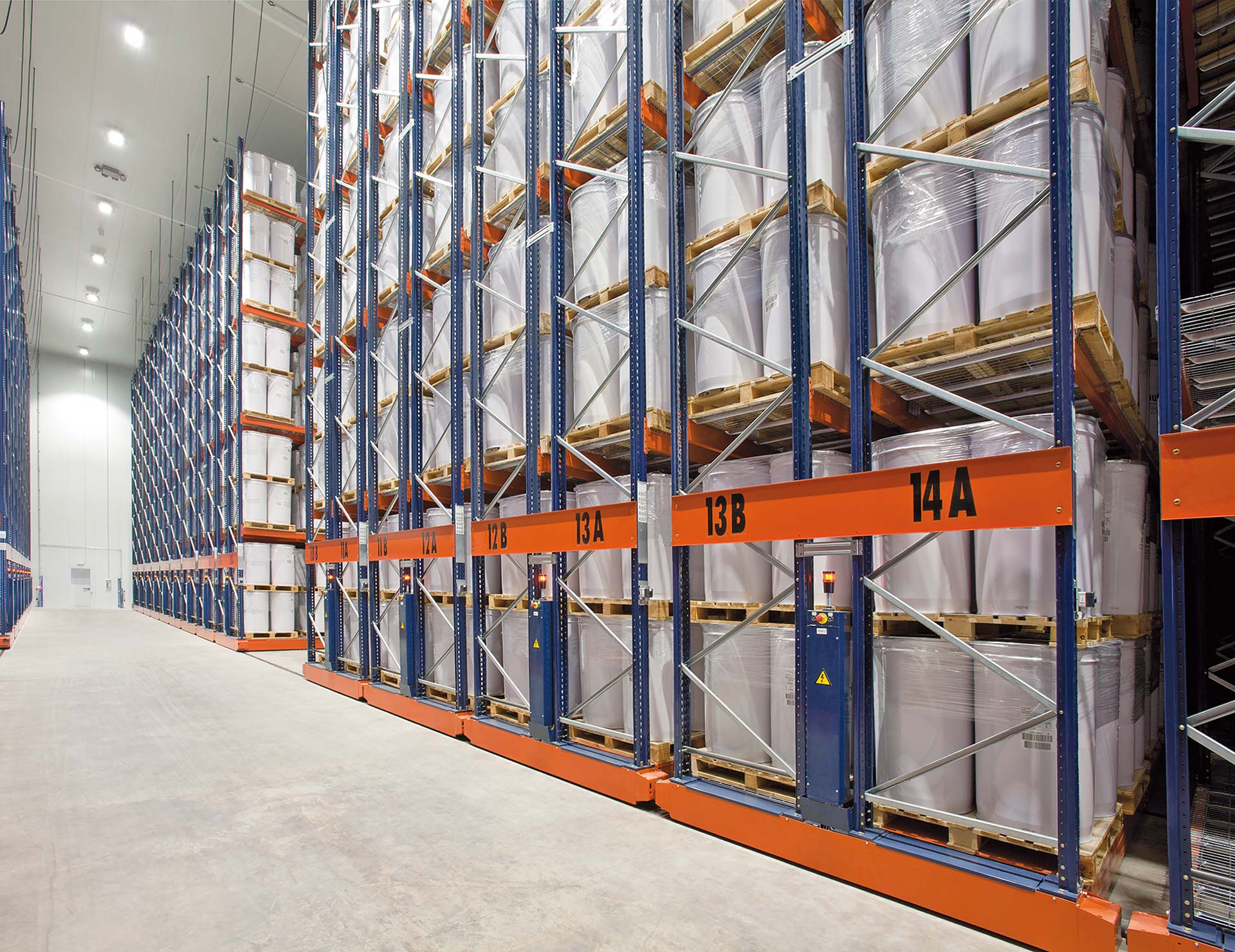

Movirack pallet racking can mean an installation’s storage capacity increases between 80% and 120%

9e0cd7a6-d524-e751-be1b-4fffbf3df121

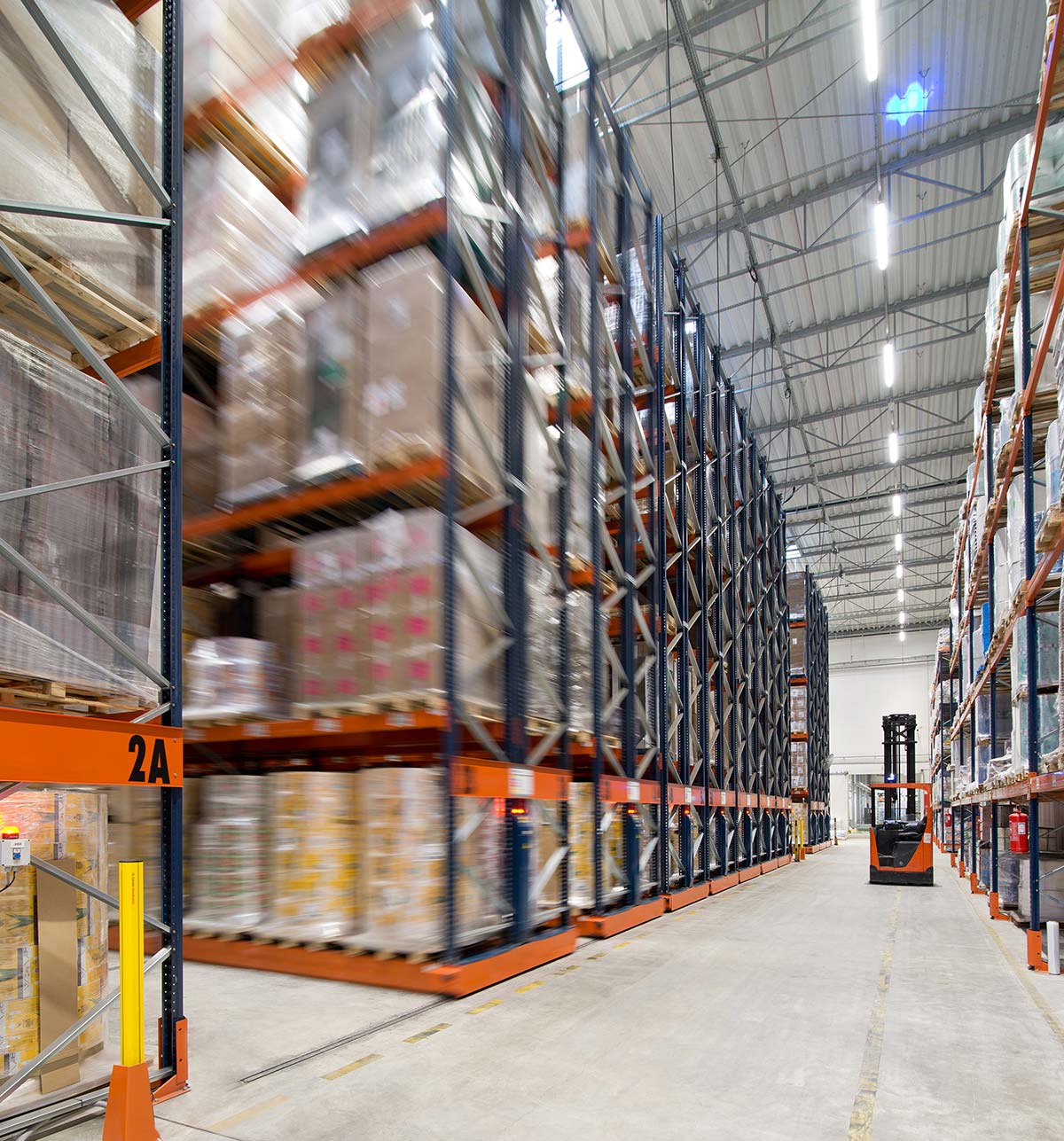

Movirack pallet racking gives access to each pallet, perfect in case of few pallets per SKU

5f49fb09-e1dd-2a2b-d1a4-727b90d968af

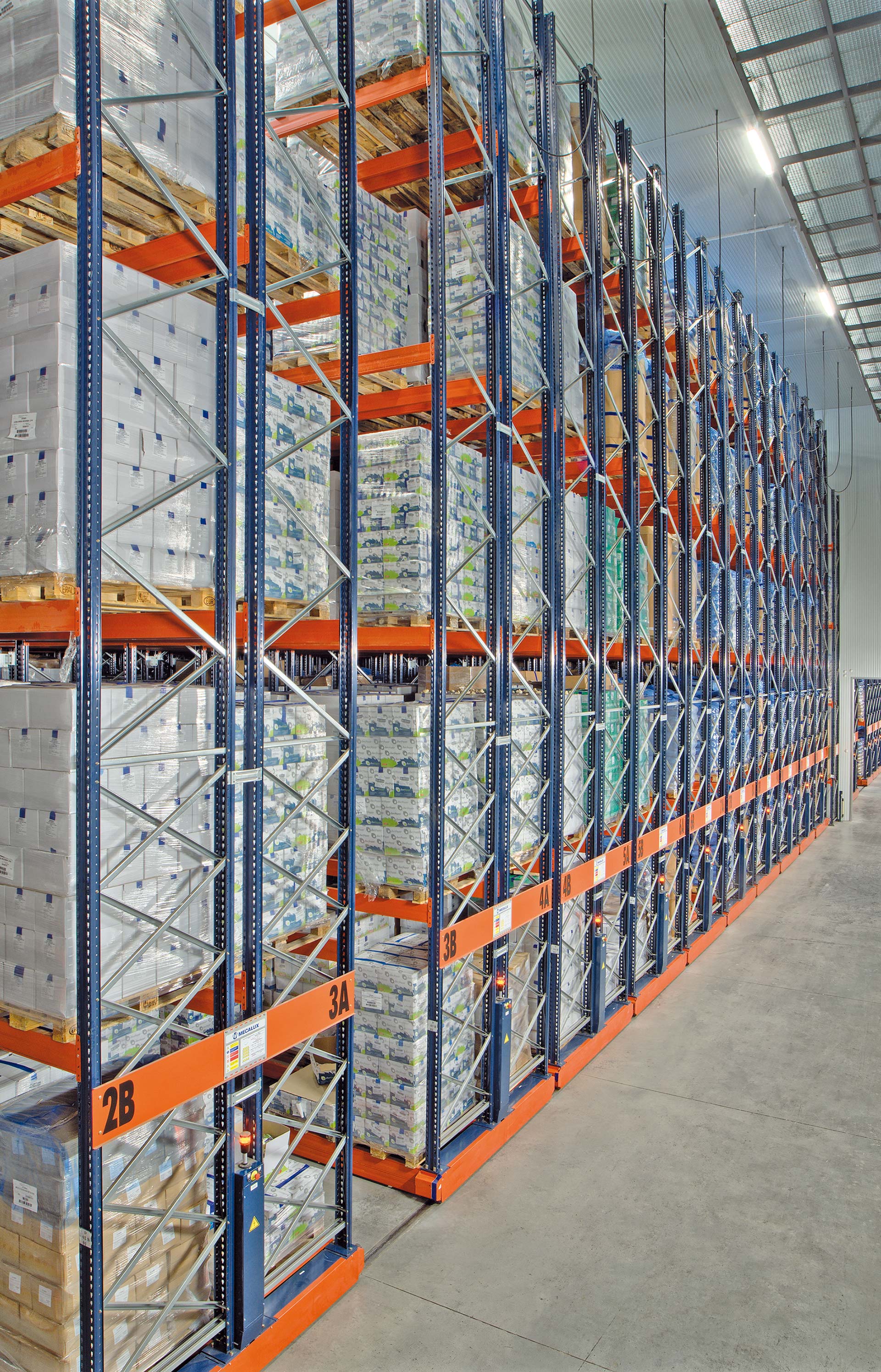

This system can be adapted to warehouses with more levels to optimize the load capacity

a2ce8547-0194-dbdf-2537-9c7af3983cb2

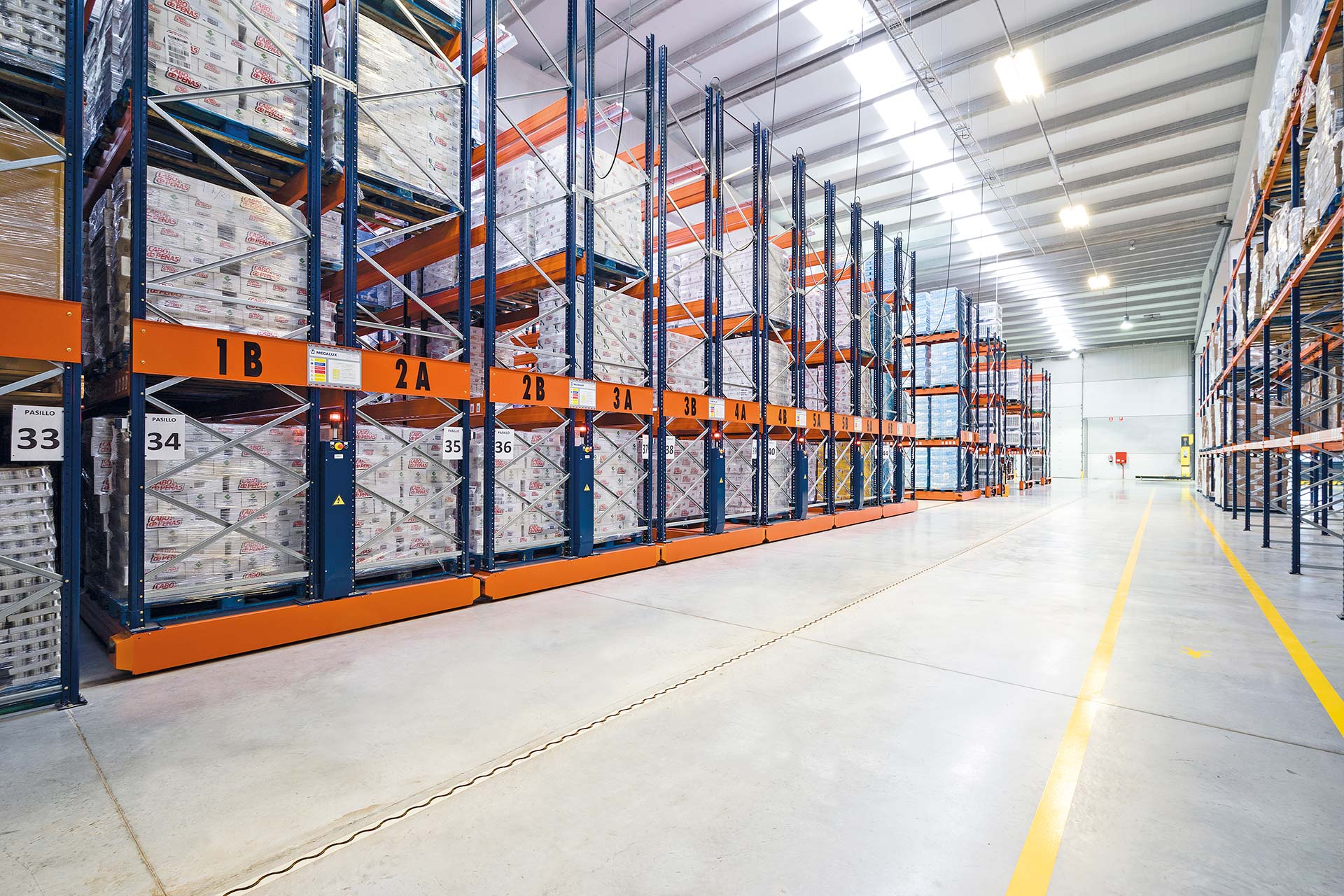

The mobility of this type racking is ideal for low-bay warehouses

38fc0e41-2526-de98-1367-db18b98d7be6

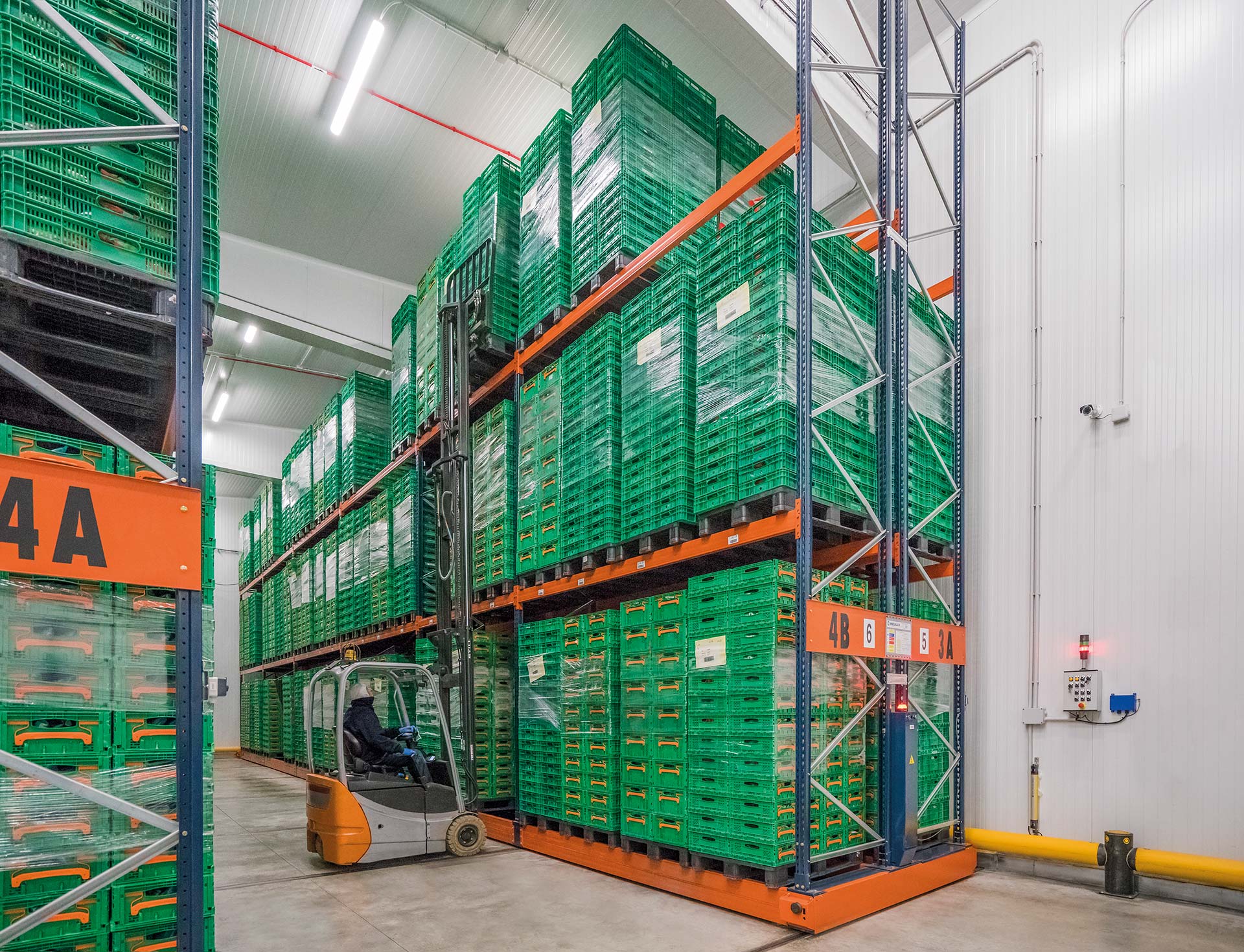

This mobile storage system is ideal for the food industry, where there are usually few pallets per SKU

47b0cd8e-f059-78c3-be01-c5be411e84ac

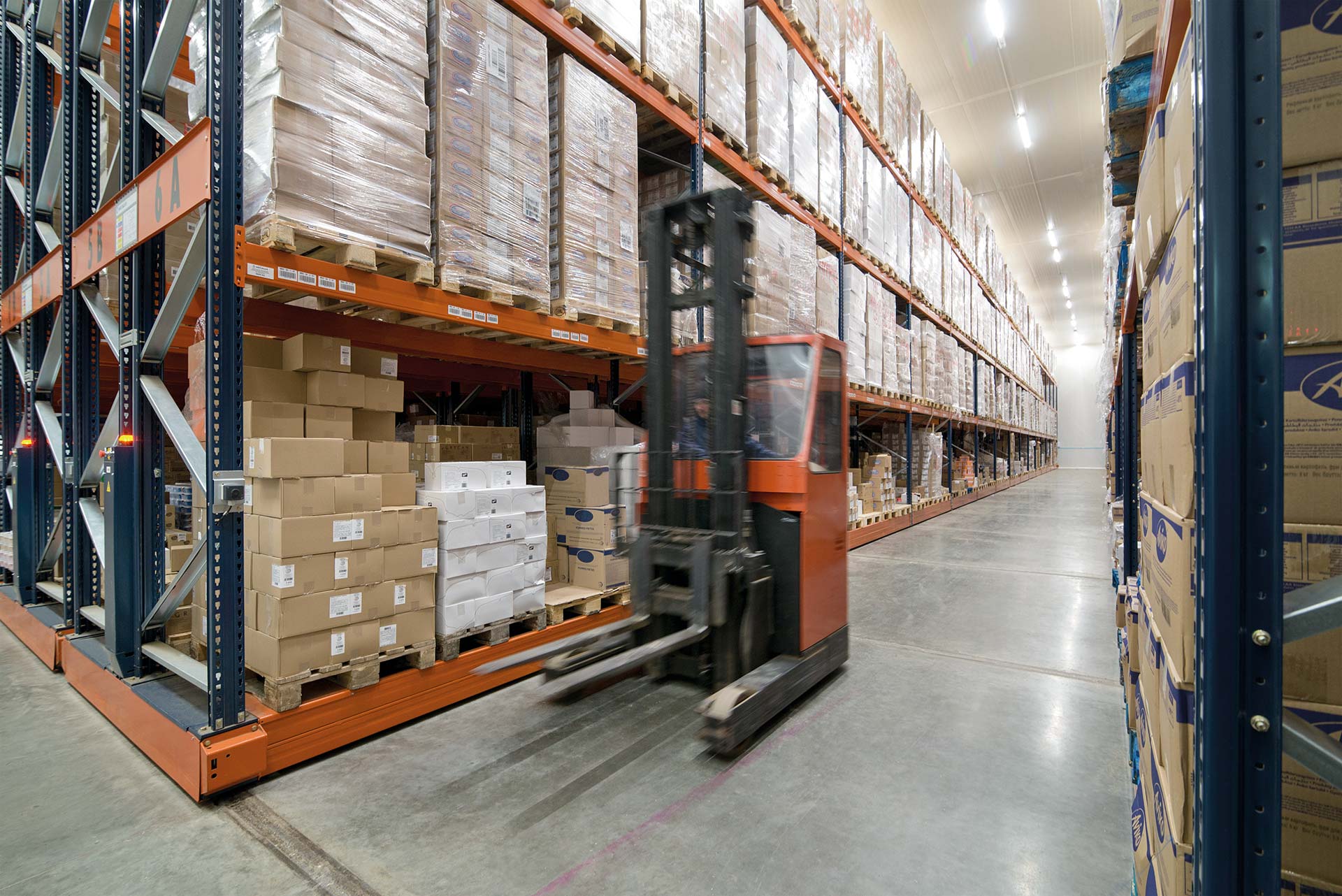

The handling equipment has access to the goods through an aisle that opens inside the rack

53ea7bbd-f082-718a-ccef-d7533ea63650

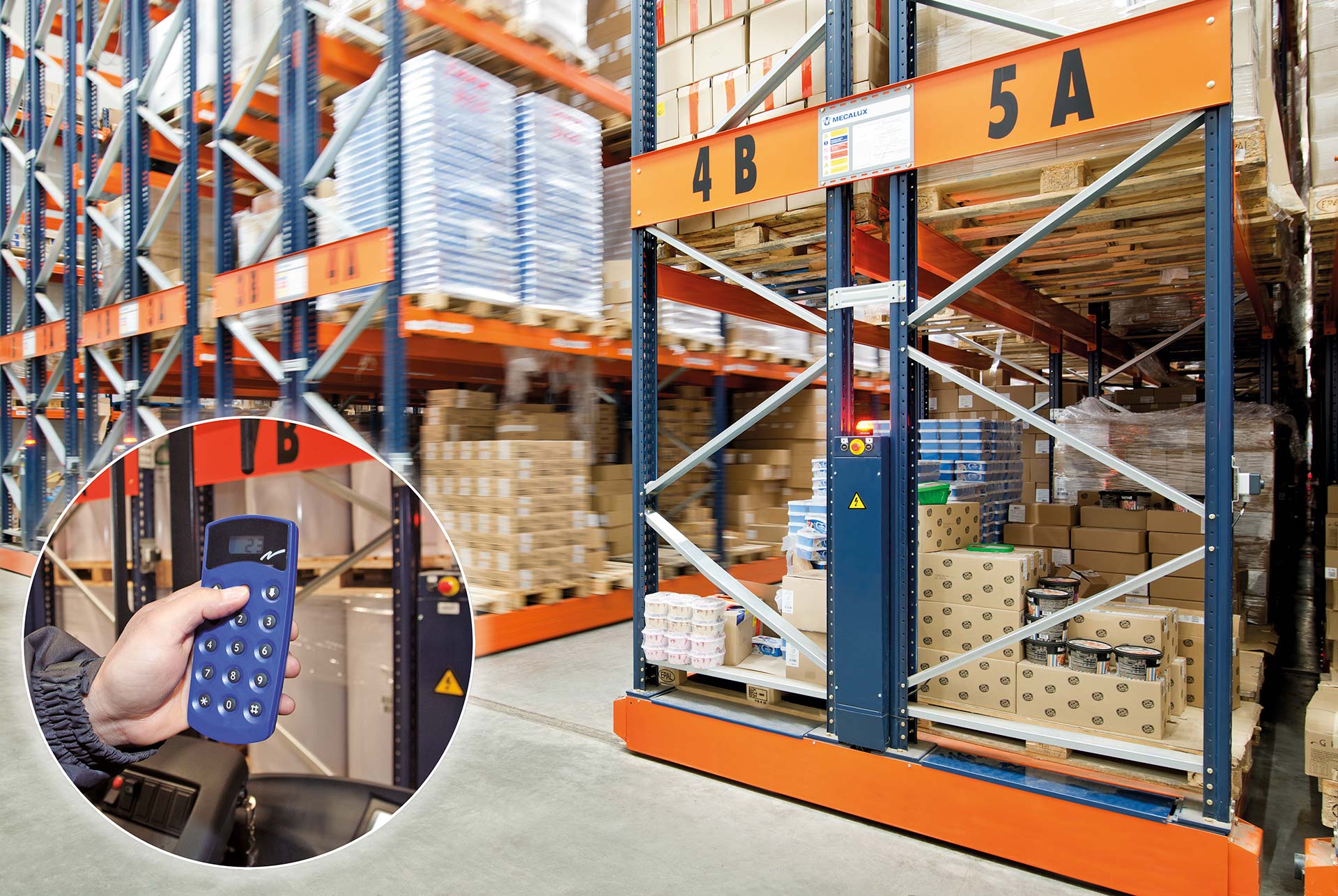

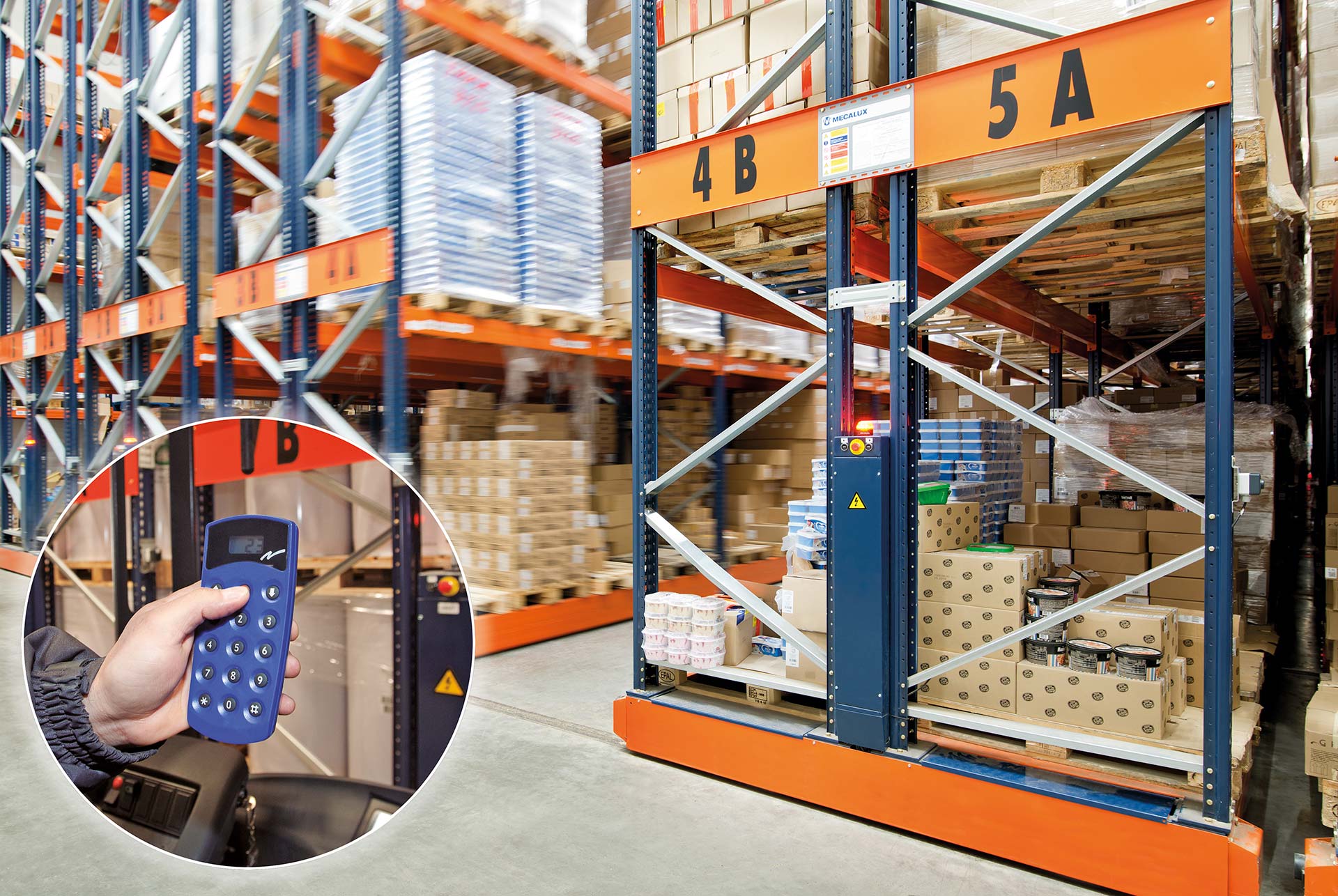

The operator selects which aisle to be opened through a remote control

360abe46-48f3-5e1f-7ee9-45c380c8d3b2

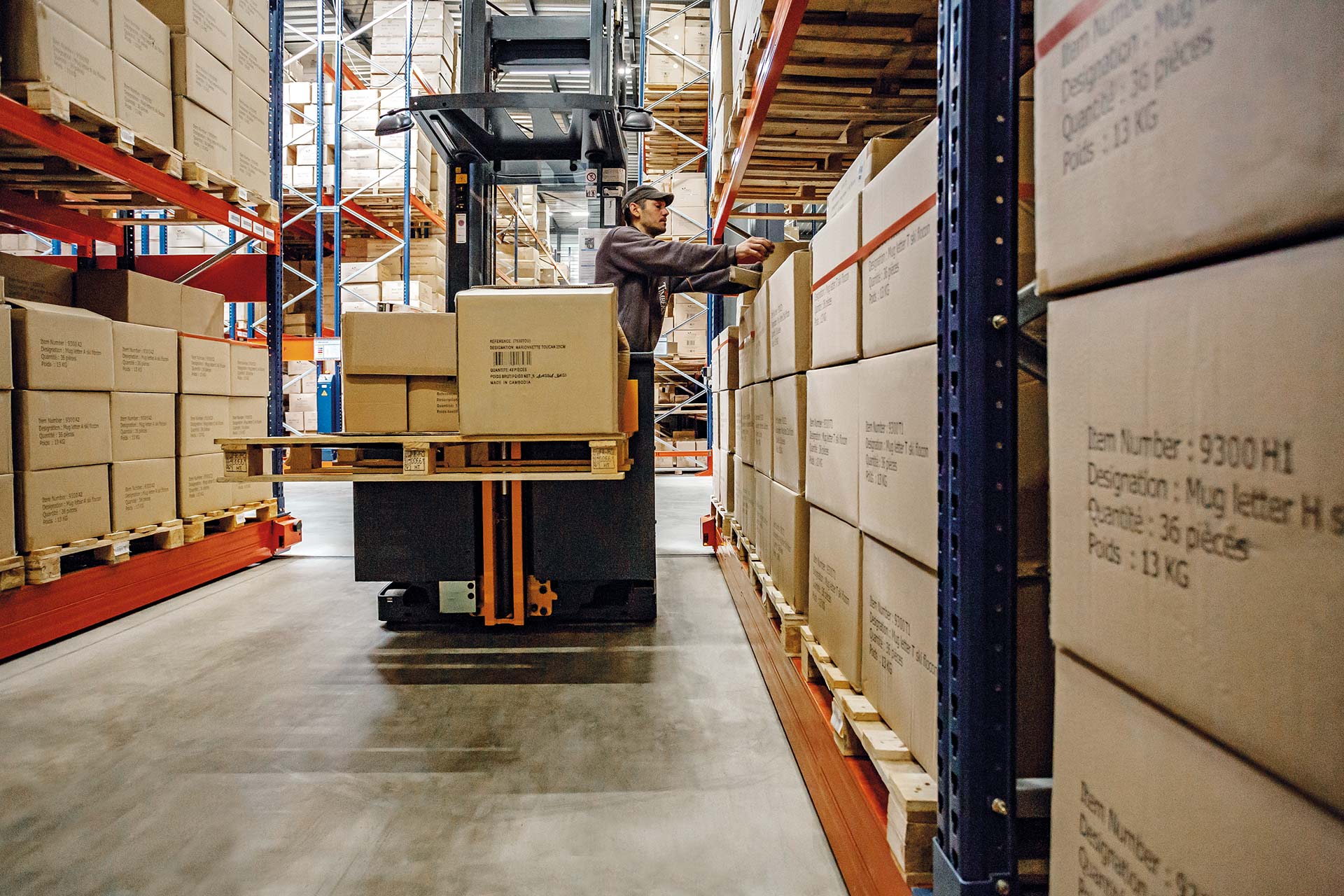

Remote aisle opening even allows operators to pick directly from the rack

35855710-ca3d-588f-e3c3-1216557f0a3b

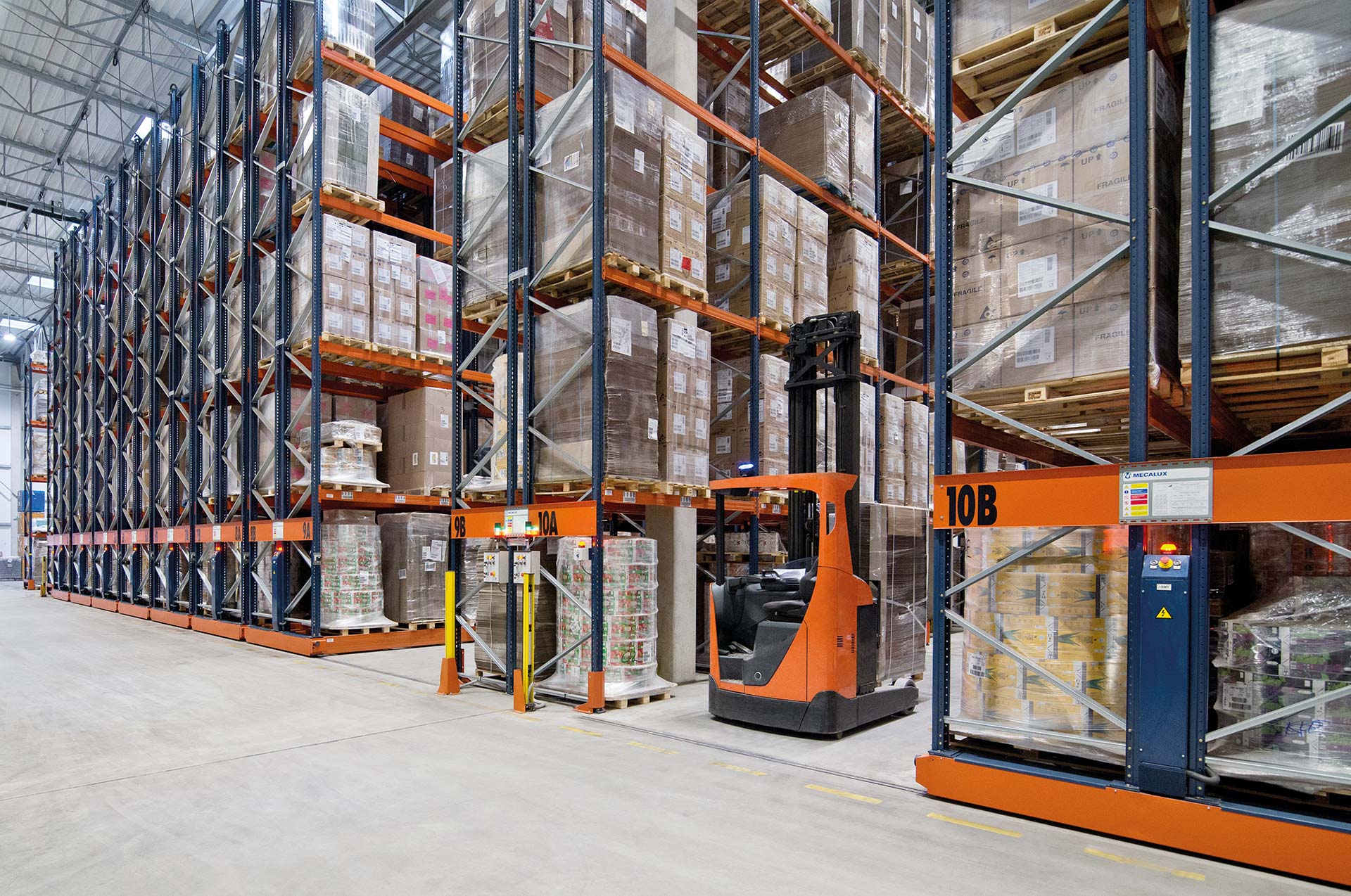

This storage system can be combined with fixed racks to achieve maximum warehouse performance

b9dfd2e7-0b48-1f18-e6bf-aaa02a223337

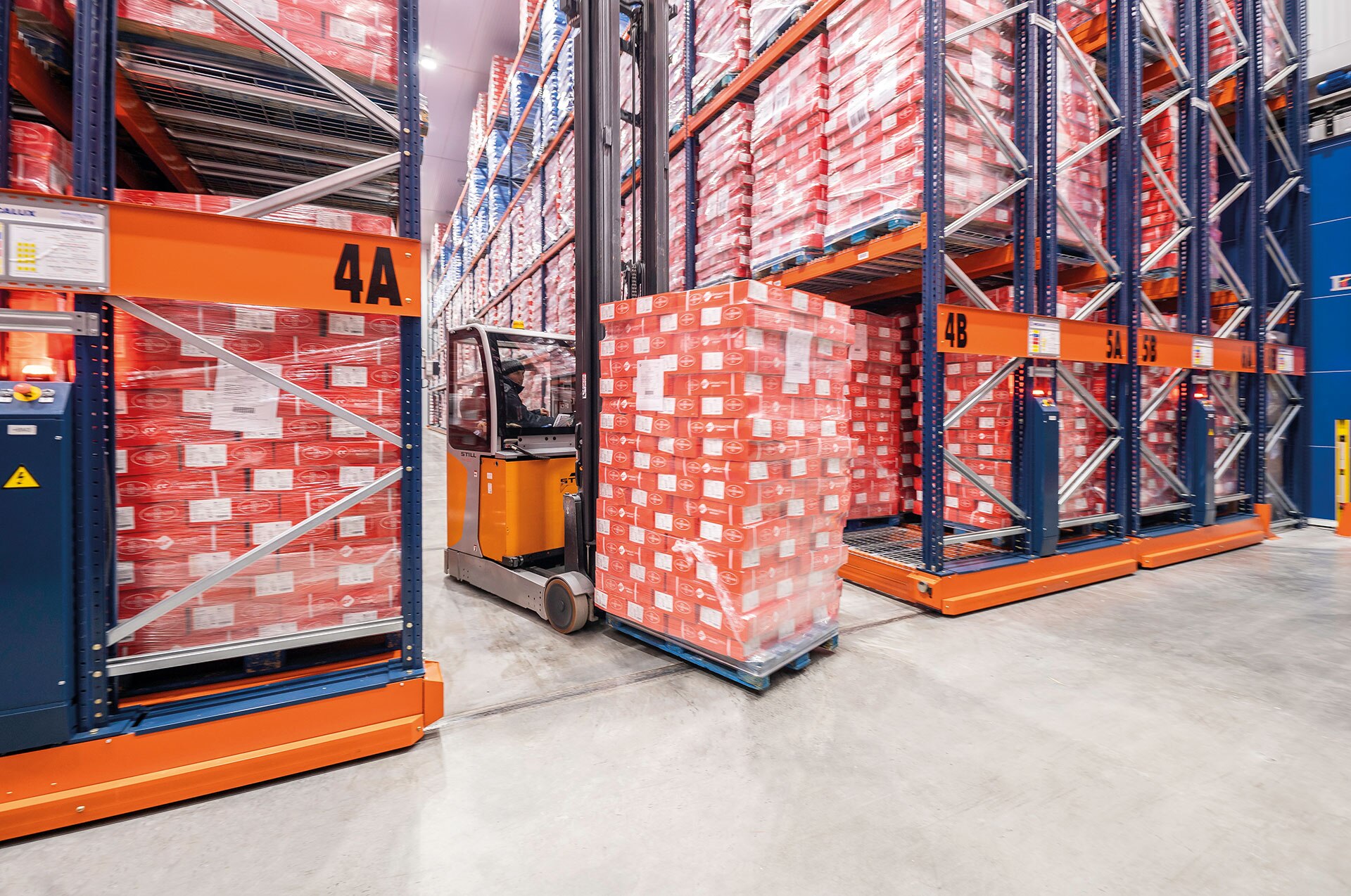

Movirack racking opens perpendicular to the main aisle along rails embedded in the floor

771feb0e-4632-d239-b73a-4daefab048fa

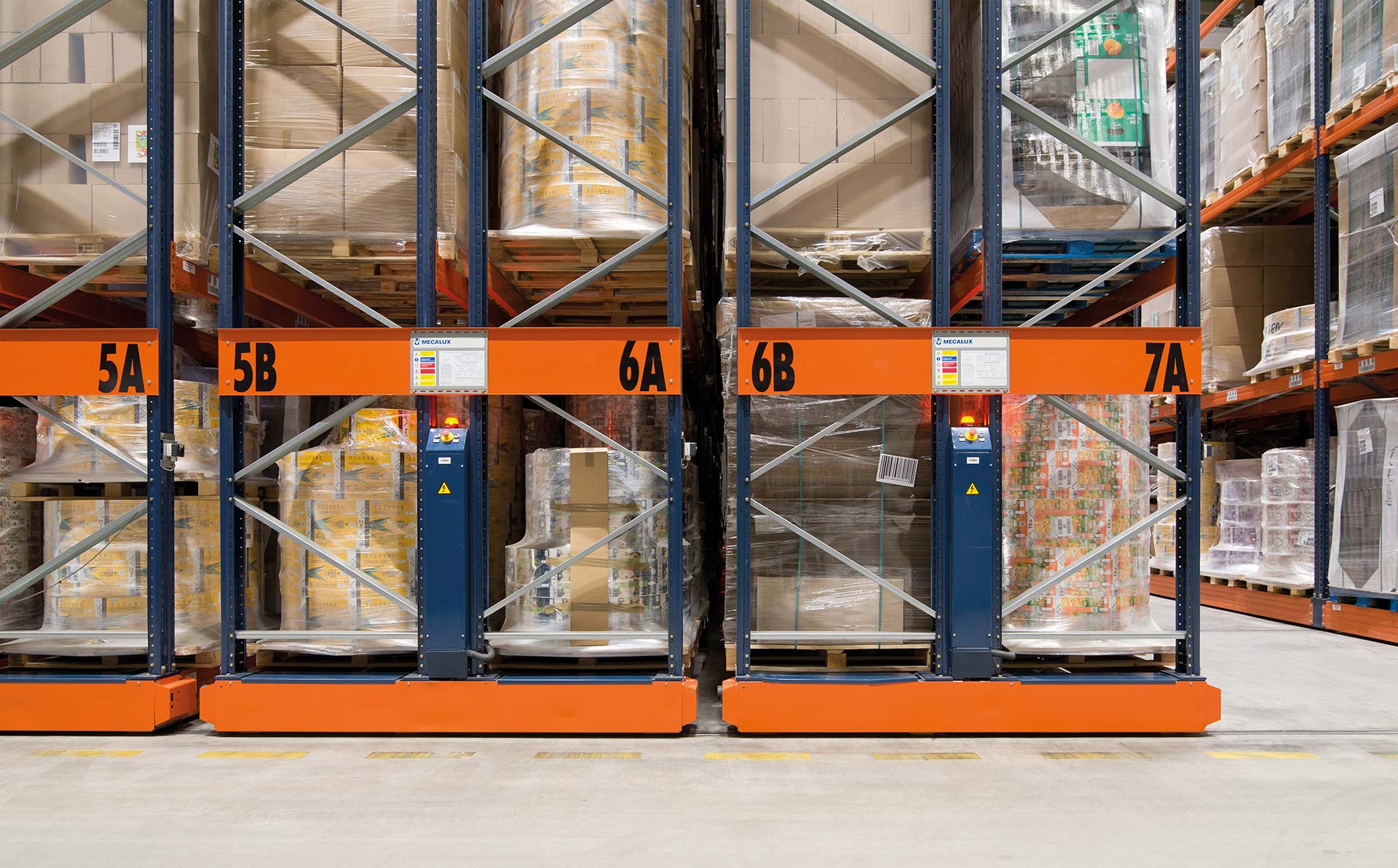

Movirack mobile pallet rack bases move the structure sideways thanks to rails set on the floor

54bdbcfa-658d-017a-53f9-24033ac94b3c

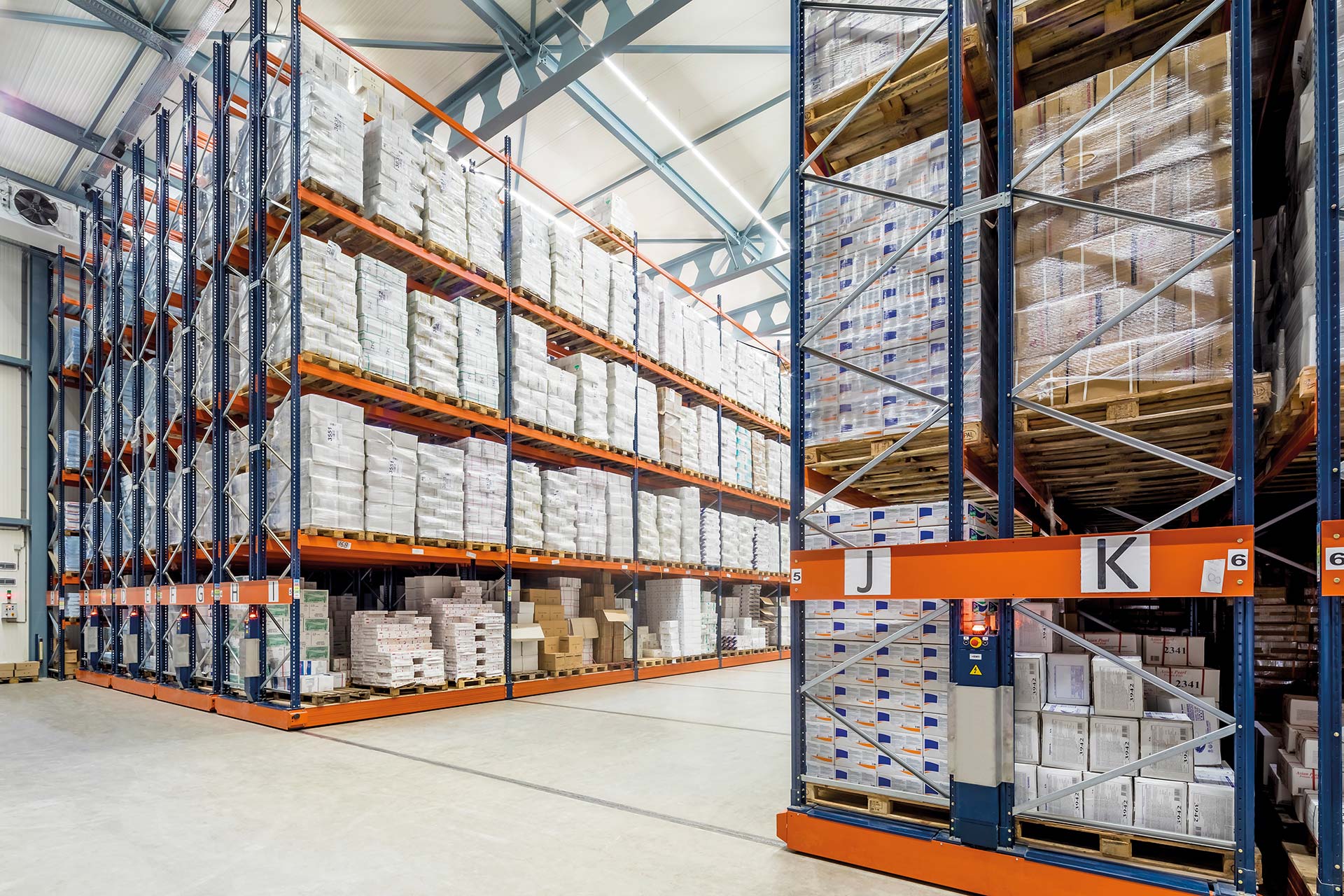

The presence of bracing in the structure ensures the stability of the mobile racks

2eb848bb-45e5-075a-73da-a7cbdeb0a32a

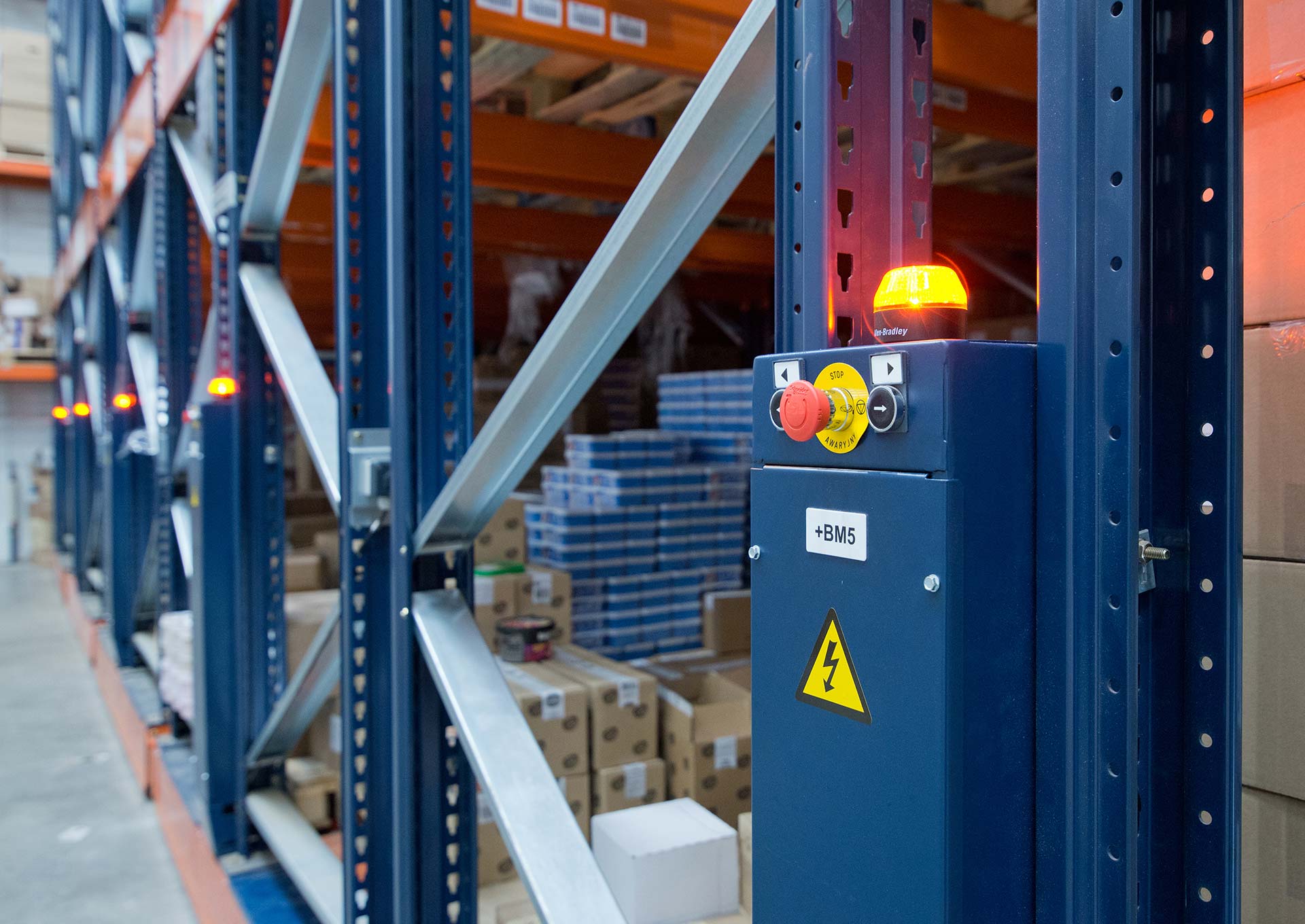

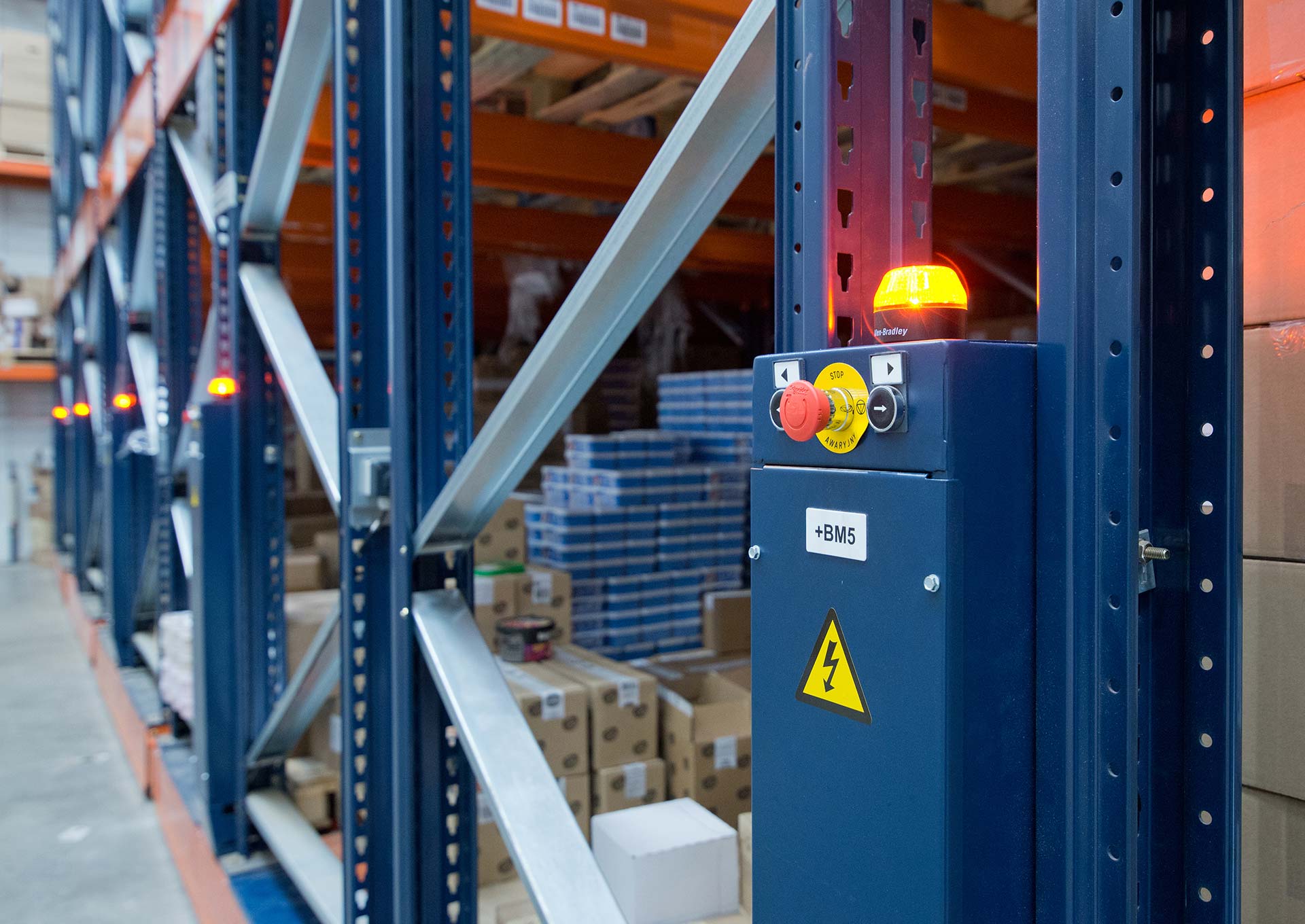

Onboard cabinets ensure that the structure moves automatically and safely

d917f623-fccf-4c2a-46cd-a6516a939ae9

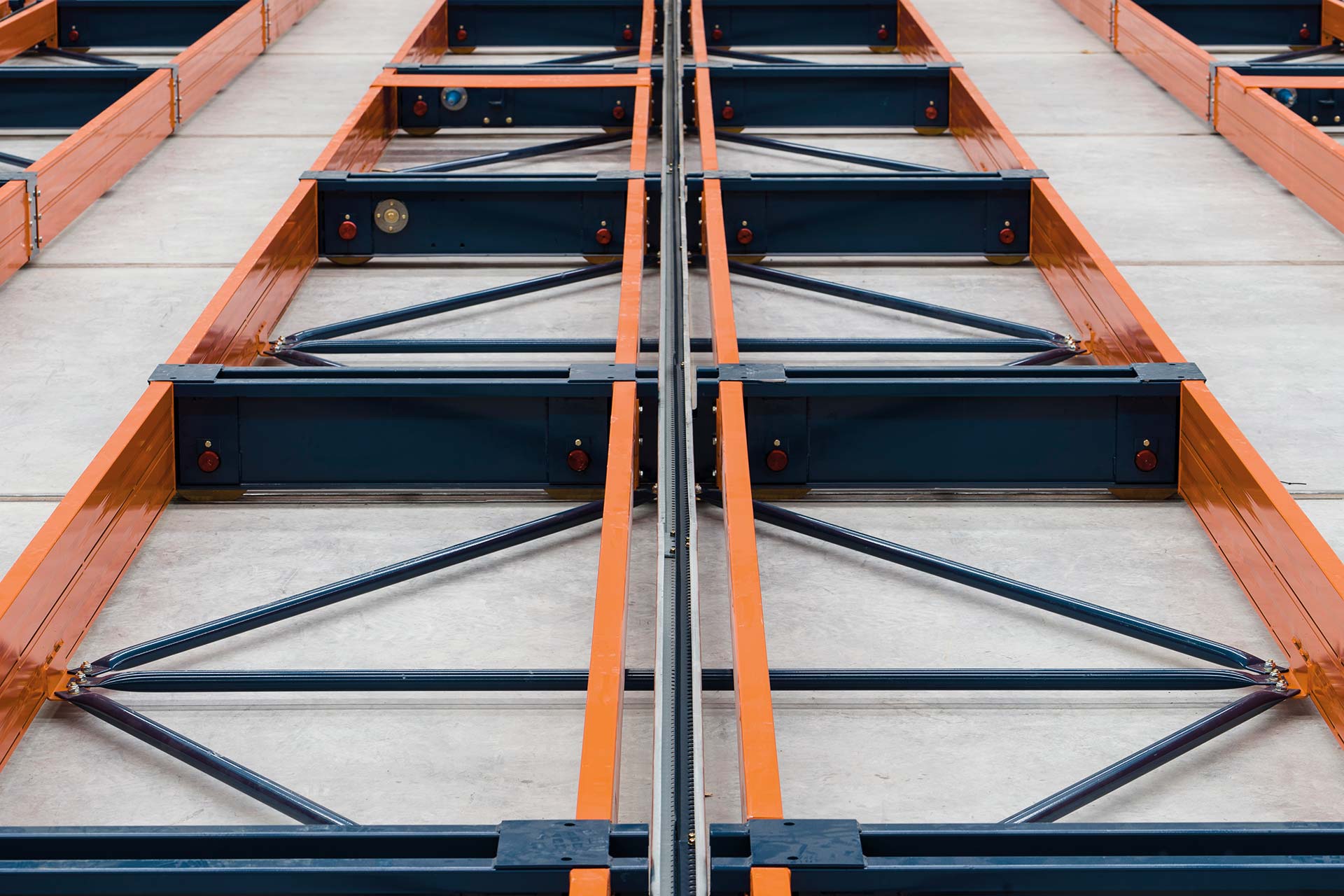

Thanks to mobile bases, warehouses with Movirack pallet racking make the most of the available space by eliminating aisles

09a699f8-d233-9160-eeef-829b09a65a3f

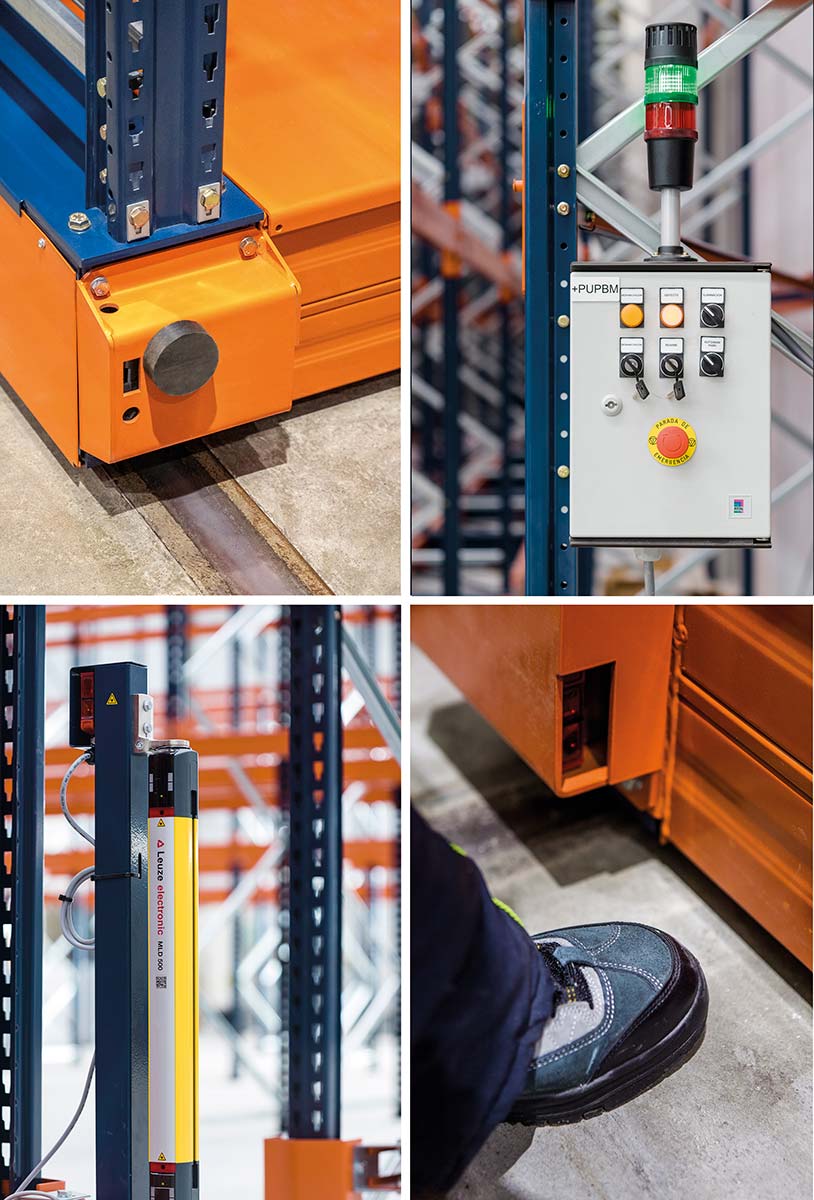

Movirack pallet racking has multiple safety features to prevent accidents: reset buttons, emergency stop...

318e09b1-f4e4-18b5-8368-2dc9ec3859e4

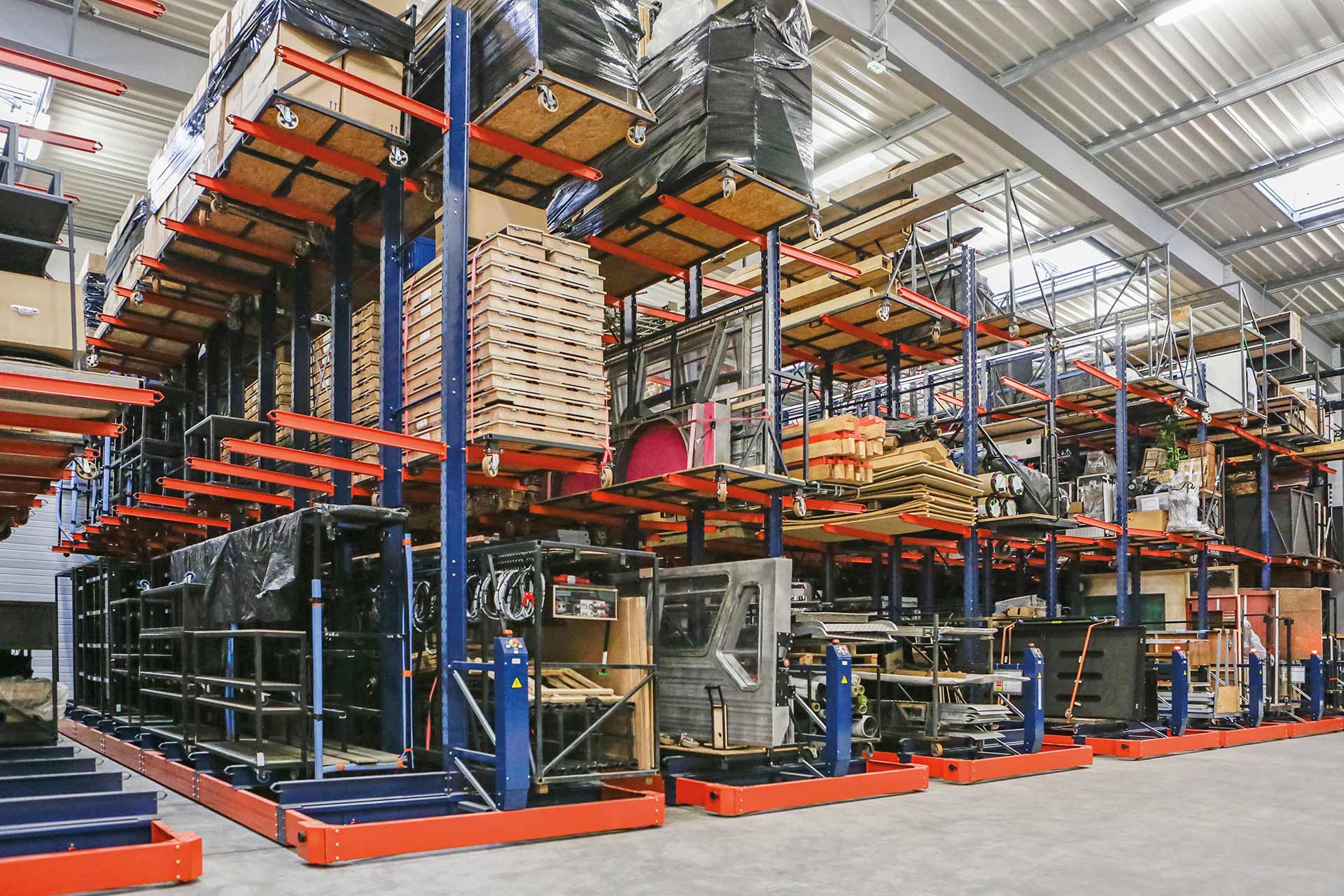

The Movirack system can be combined with cantilever racks to store irregular-shaped goods such as tubes or metal sheeting

1c64a113-d8e5-33bb-0111-f2985810dcea

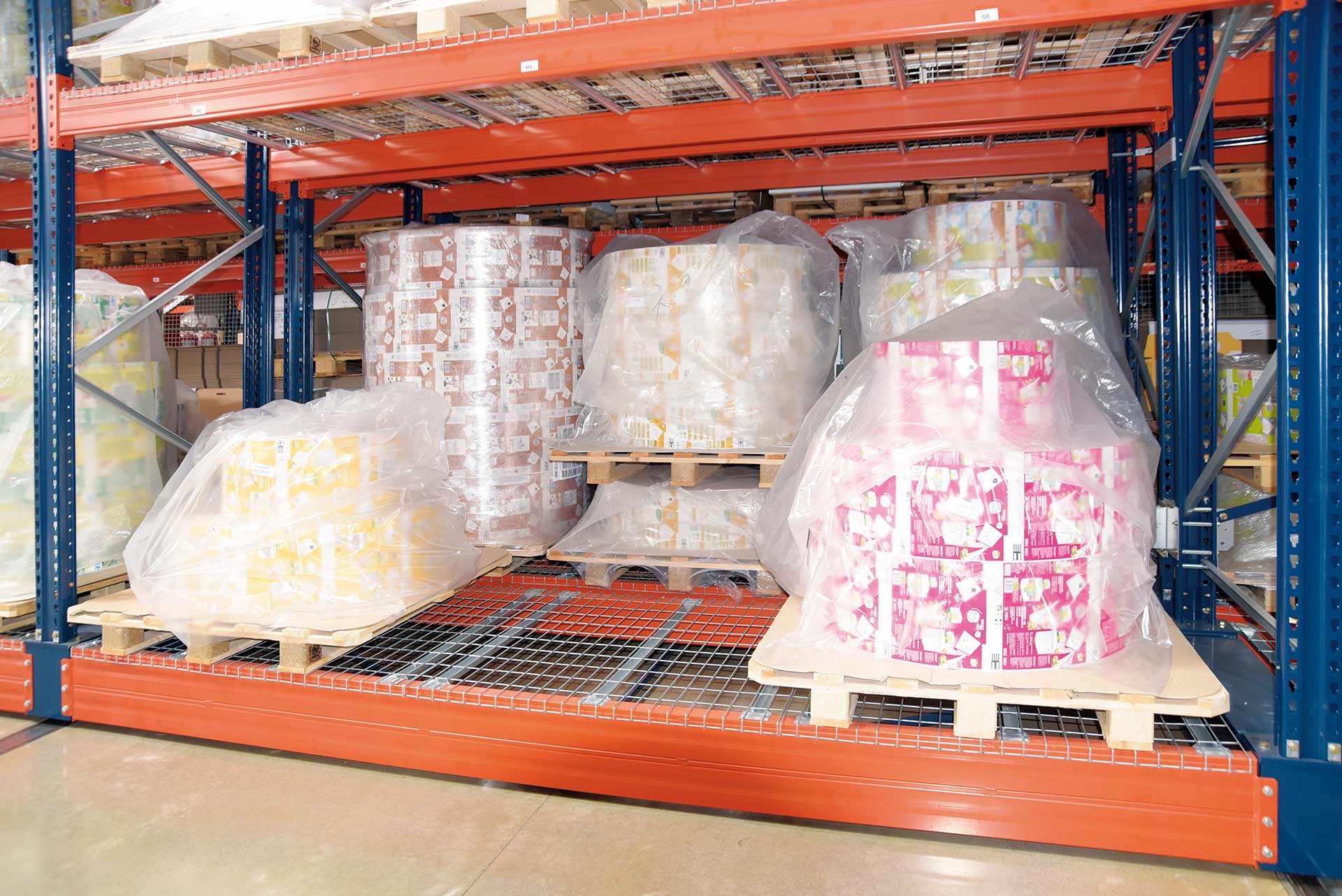

In Movirack mobile pallet racking, it is usual to place grate-type shelf panels to guarantee the stability of the goods

69ad35d8-f1f4-ad64-90f7-3b0503462542

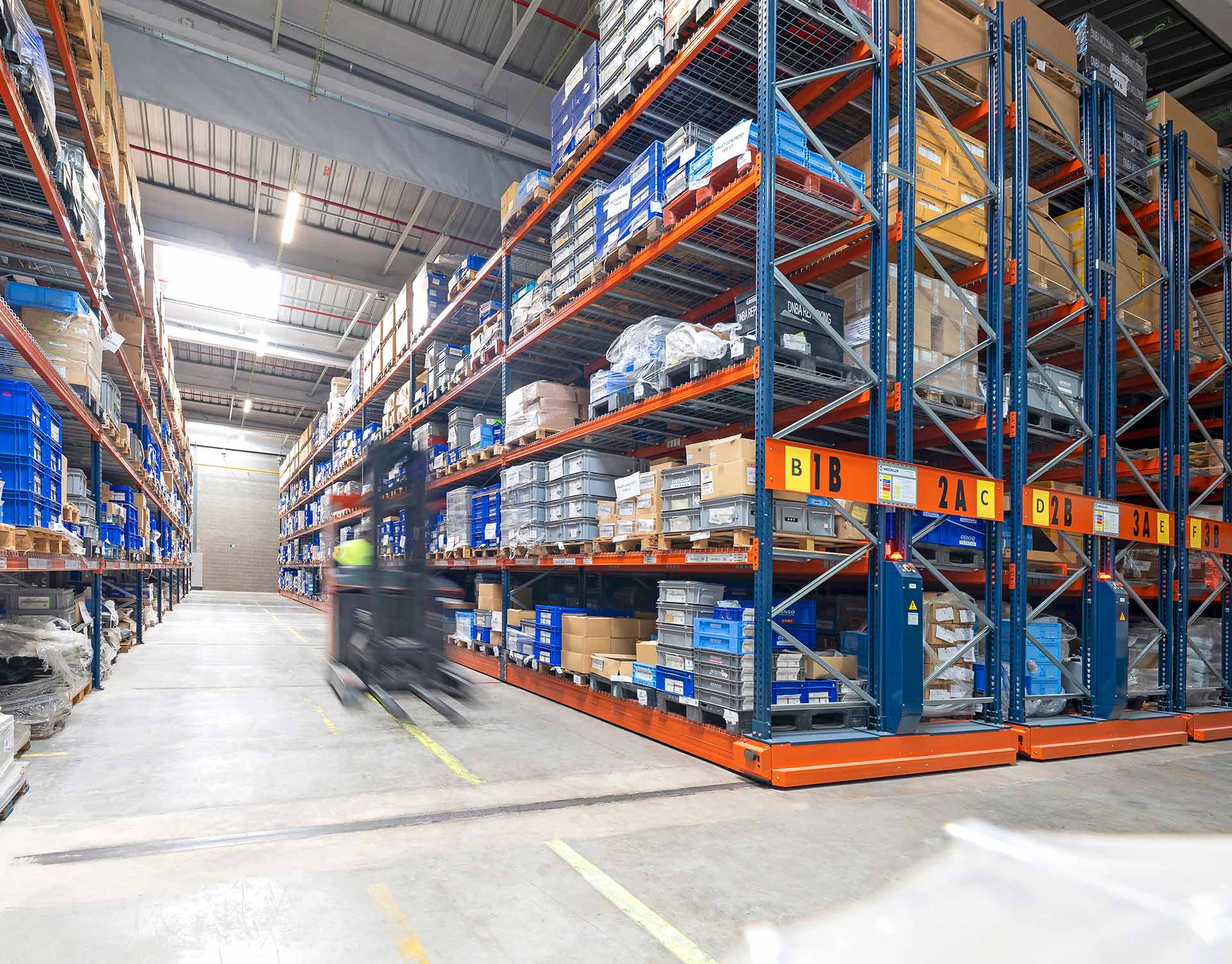

Placing safety mesh on each level of the rack ensures the protection of the unit load

6d1075bf-d75a-07b8-8765-5aa1a388fc99

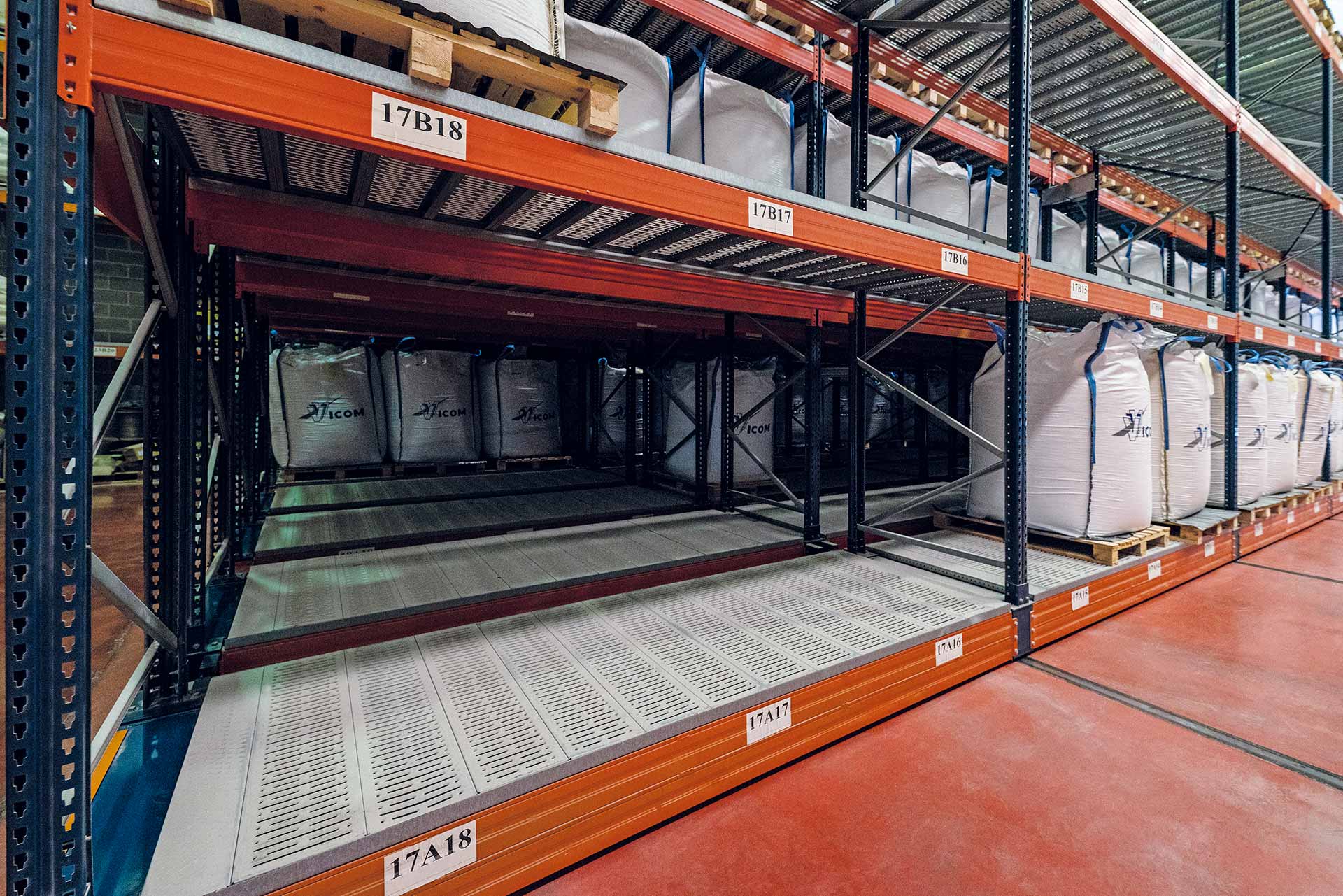

The mobile pallet racks can include different shelf panels for loads: e.g. metal or grate, among others

4797e05c-caaa-7c20-4bd1-6f38206bbf17

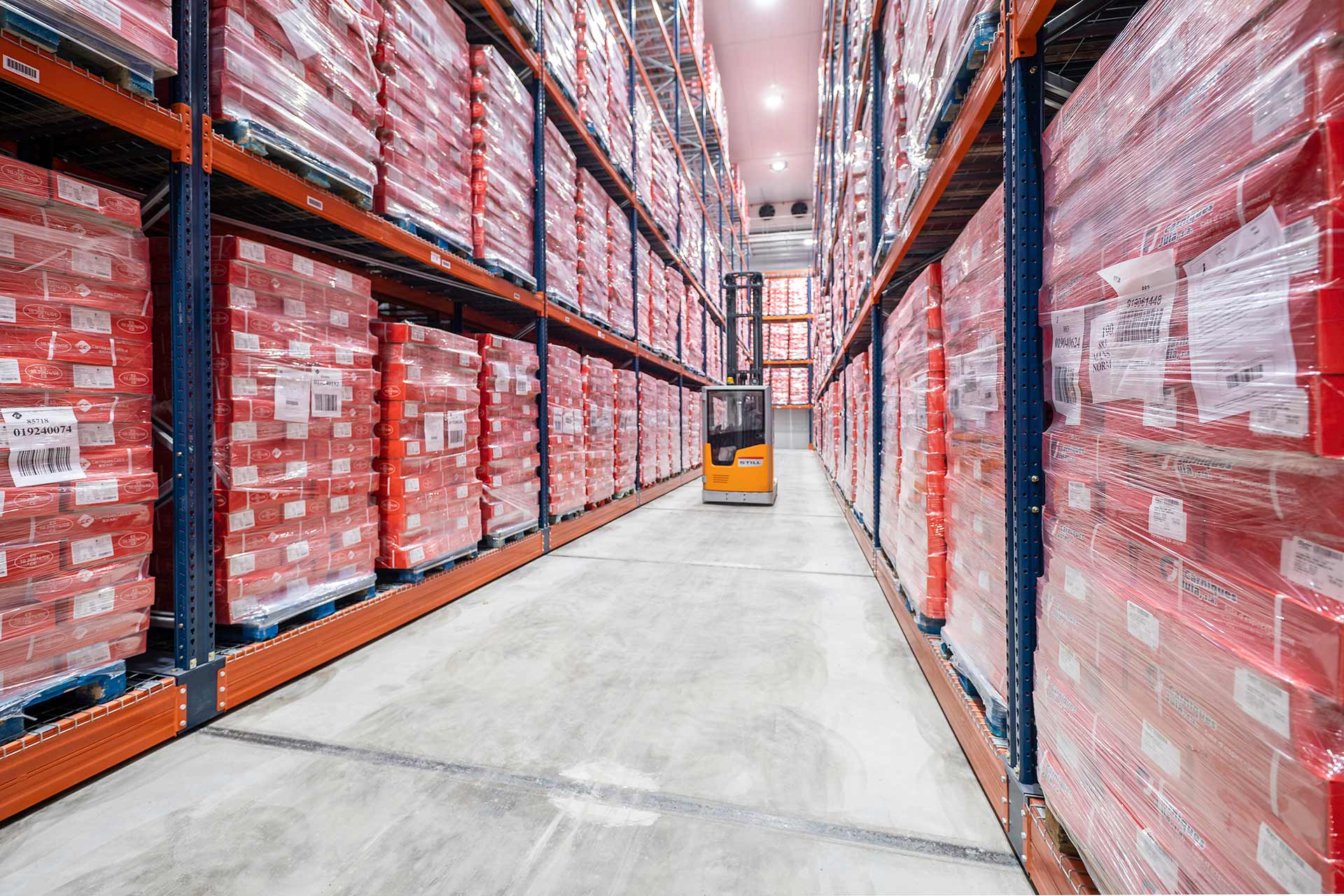

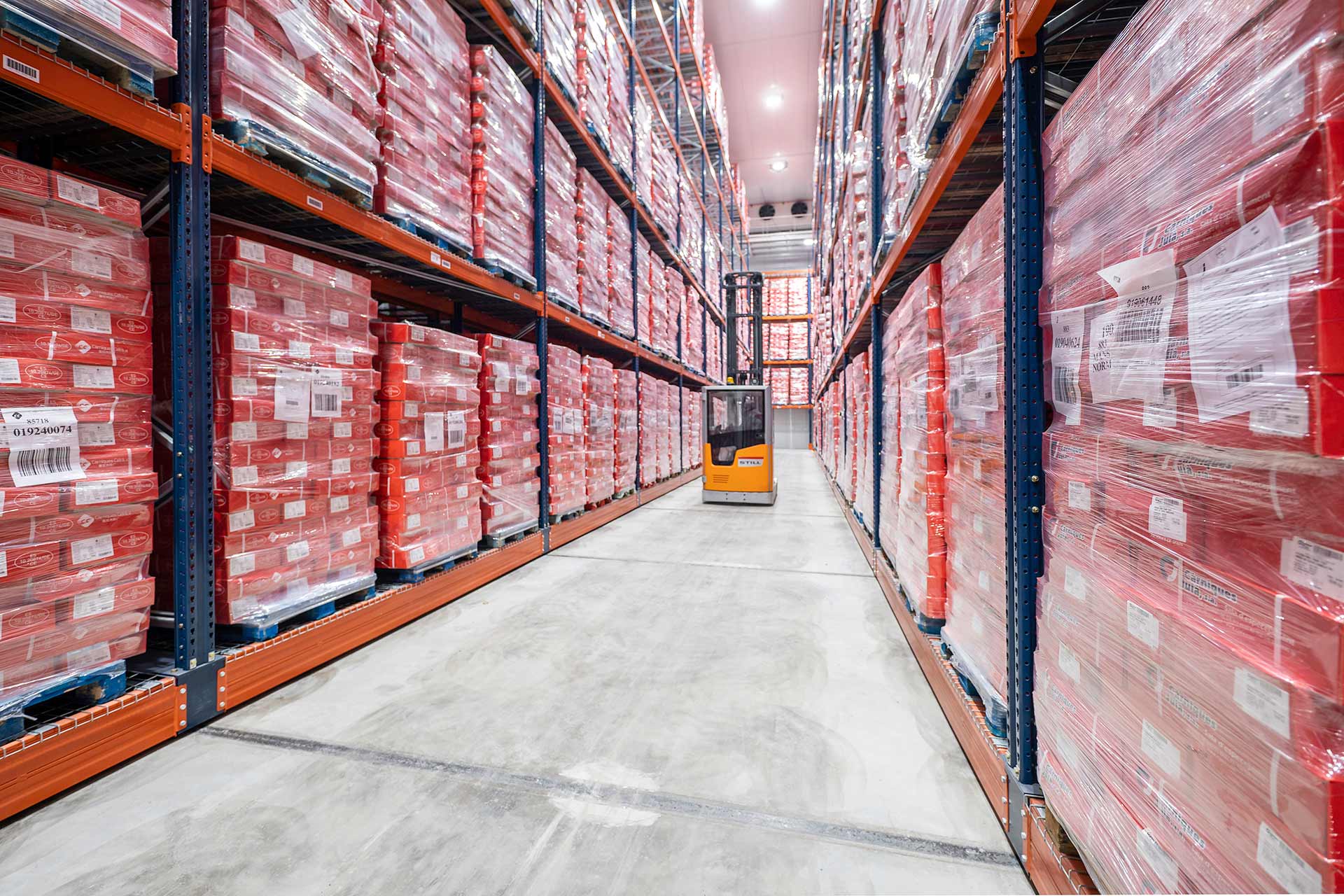

Mobile racking systems are suitable for medium and low rotation cold stores

d5fb0d75-d796-c4ec-f7ef-2c0abbdff6b0

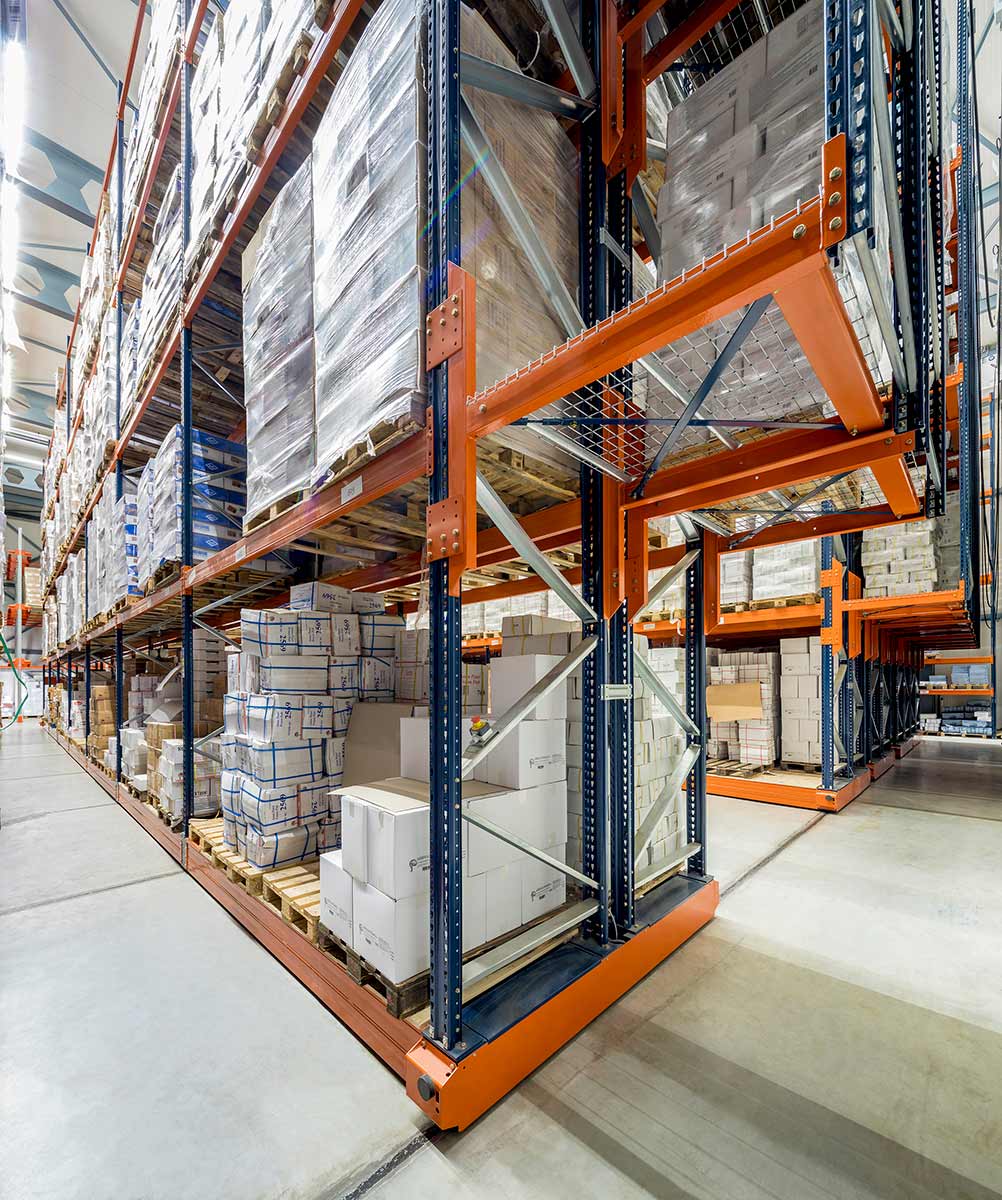

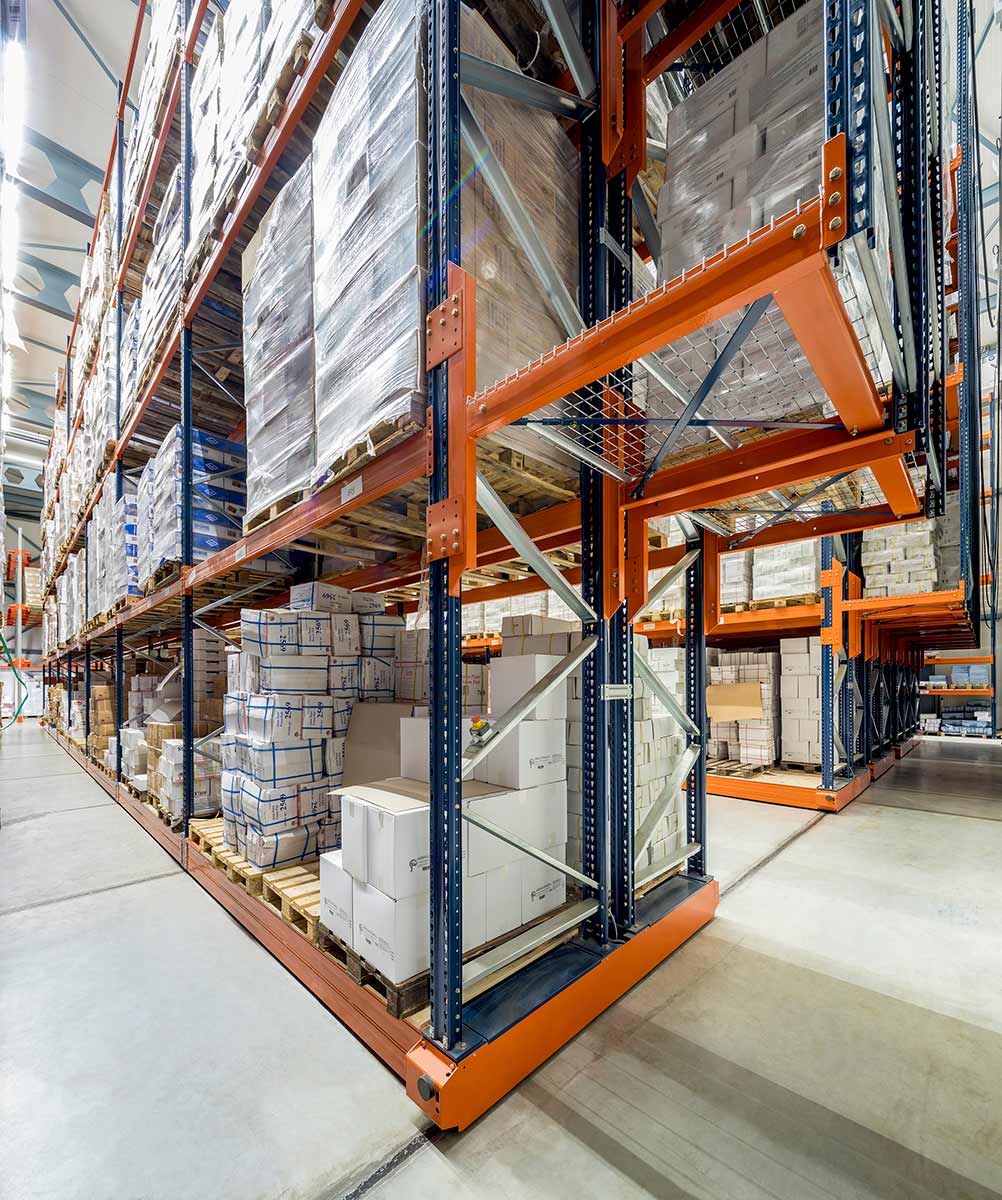

When necessary, a pedestrian passage access point can be constructed through an overhang on the top level

6fb2a09c-9d10-6170-2399-bcafa5ae3188

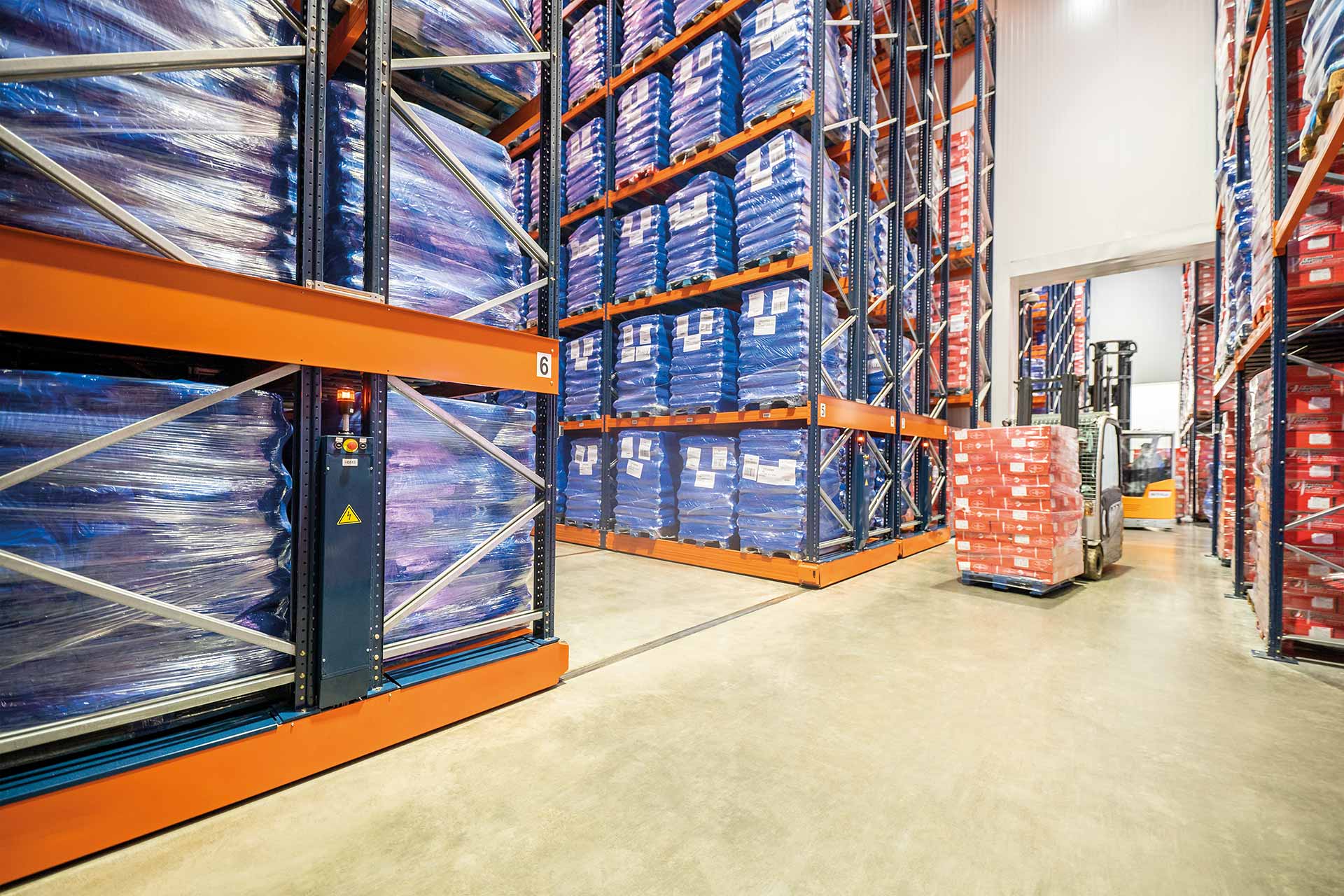

The Movirack mobile pallet rack system can be combined with pallet racking according to the demands of each warehouse

a082e1e4-0078-00ee-33d6-9f86bb83f81a

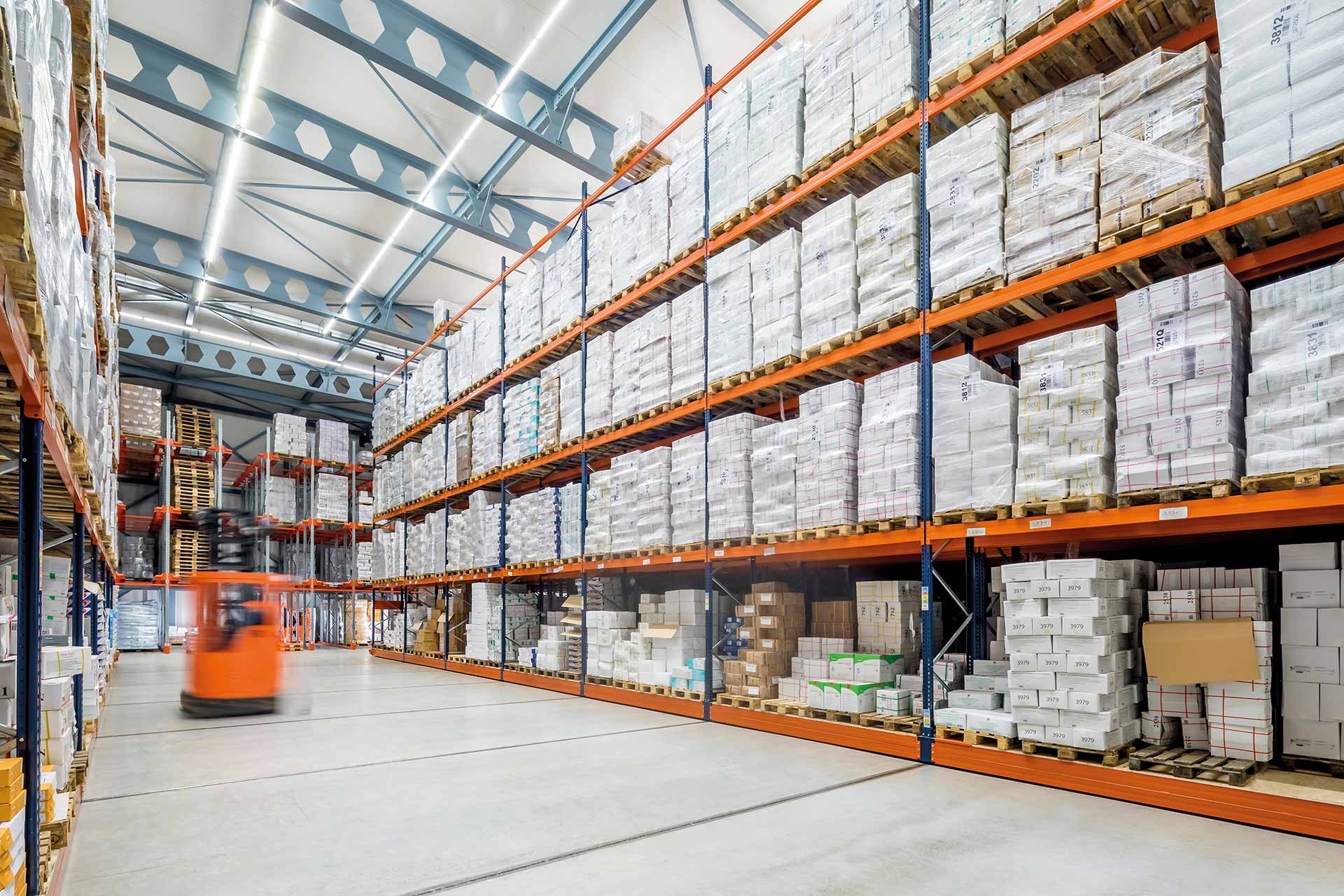

Racks on mobile bases can be combine with other systems like the Pallet Shuttle

c39d8e14-c030-ce98-2319-8c9b071e72bb

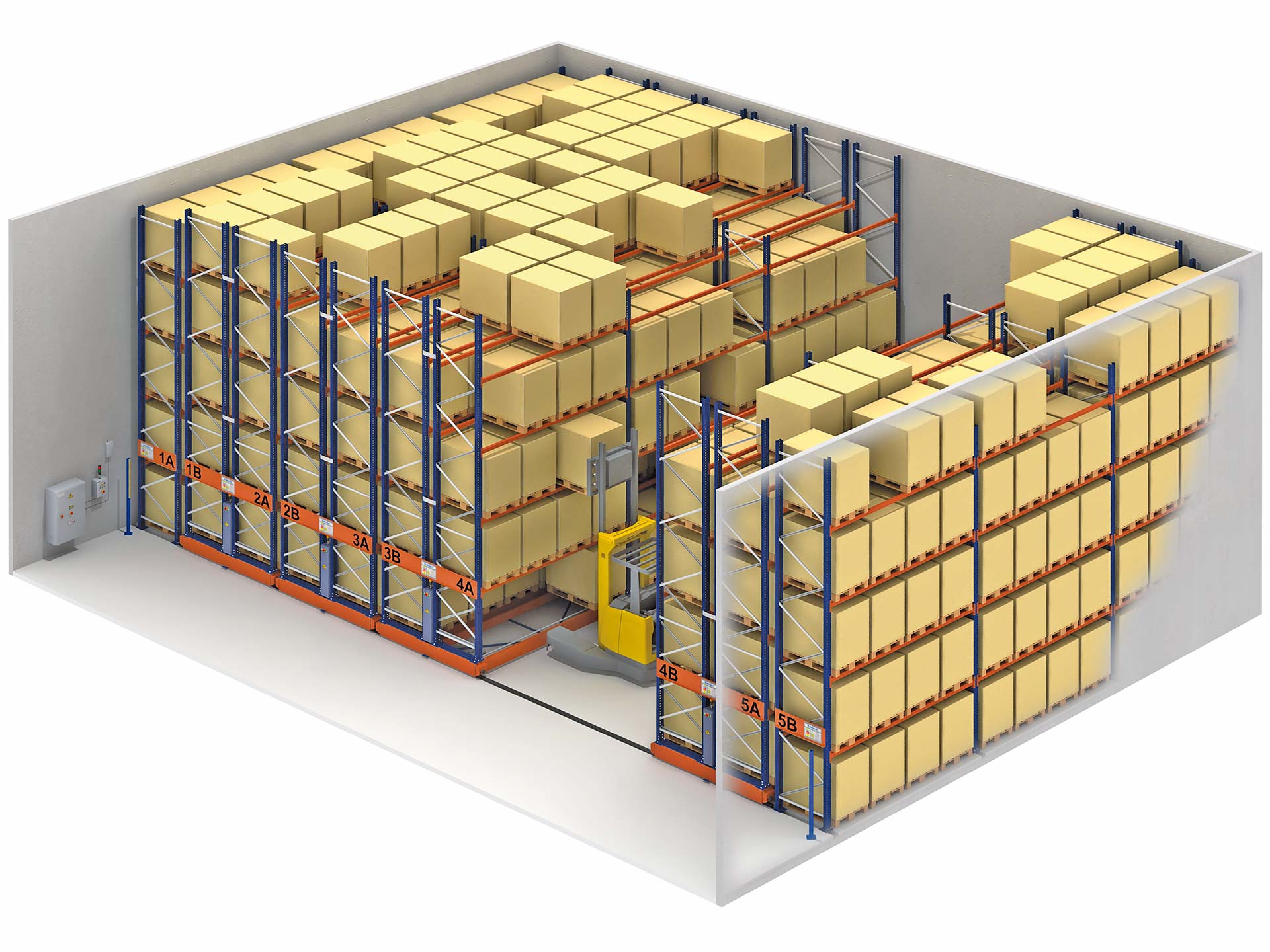

The Movirack system allows operators to maneuver forklift trucks to access the product when needed

3b90e615-f02b-be54-6090-080d55518ace

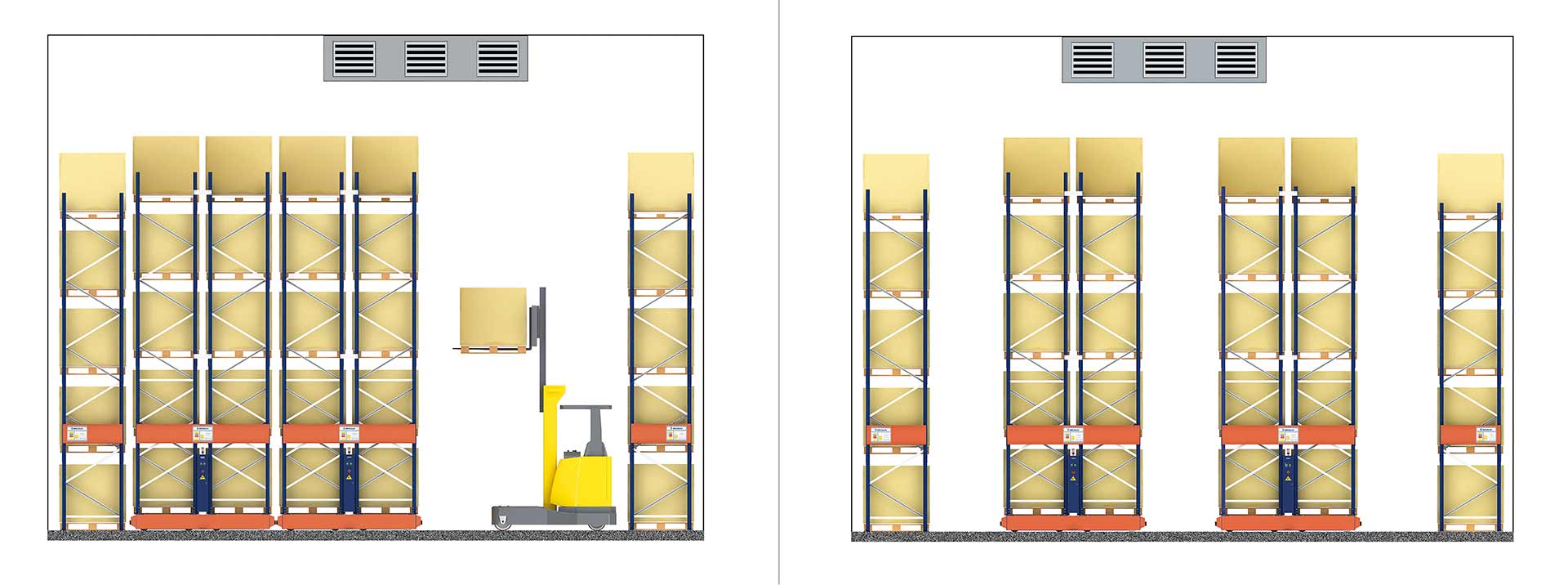

The parking option enables increased separation between racking to guarantee better air circulation

2bbf8c50-0d00-0b30-166f-18929c969110

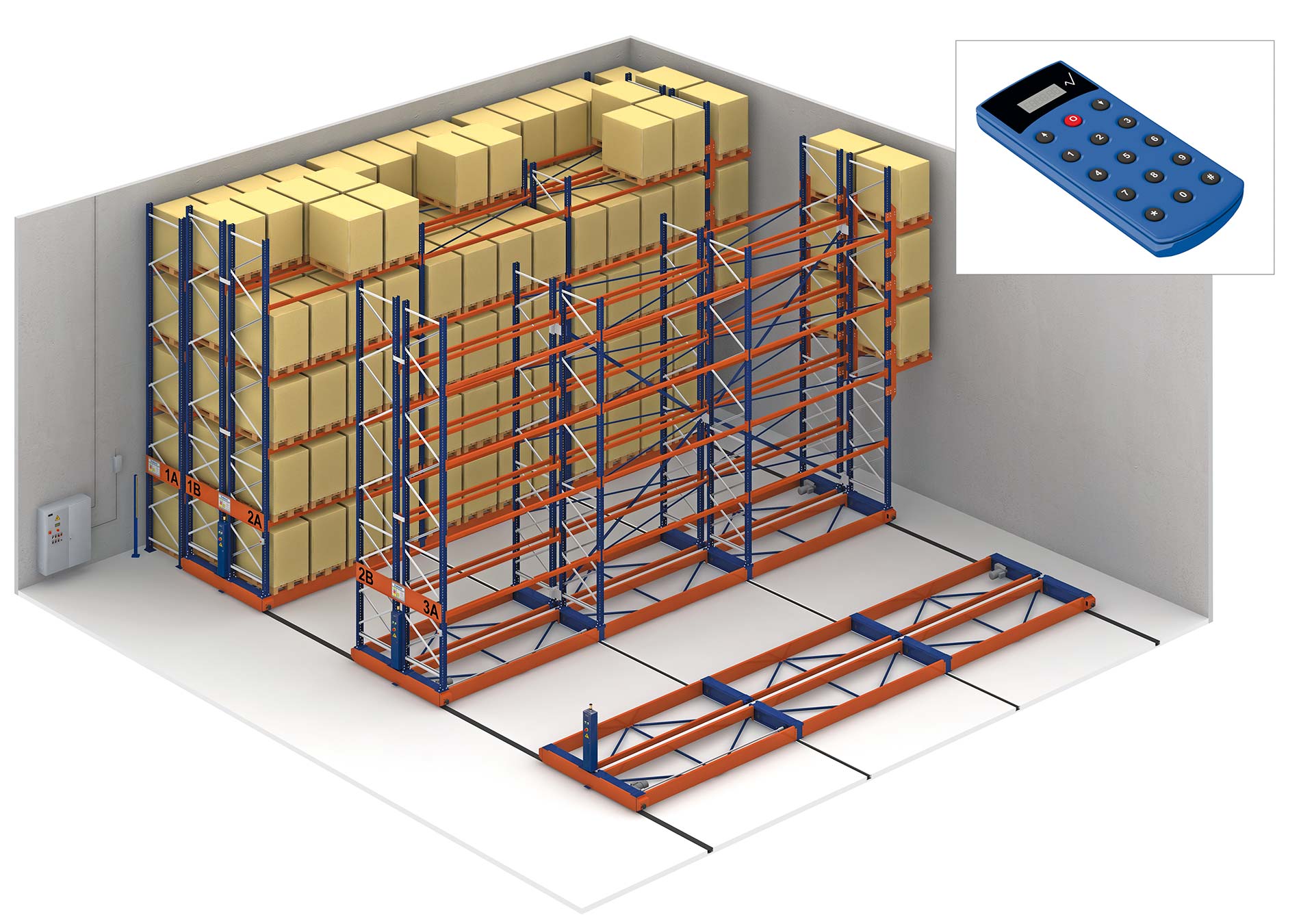

Operators move the racks via a remote control

8af68654-0bf1-691e-5e29-6c9395d6490e

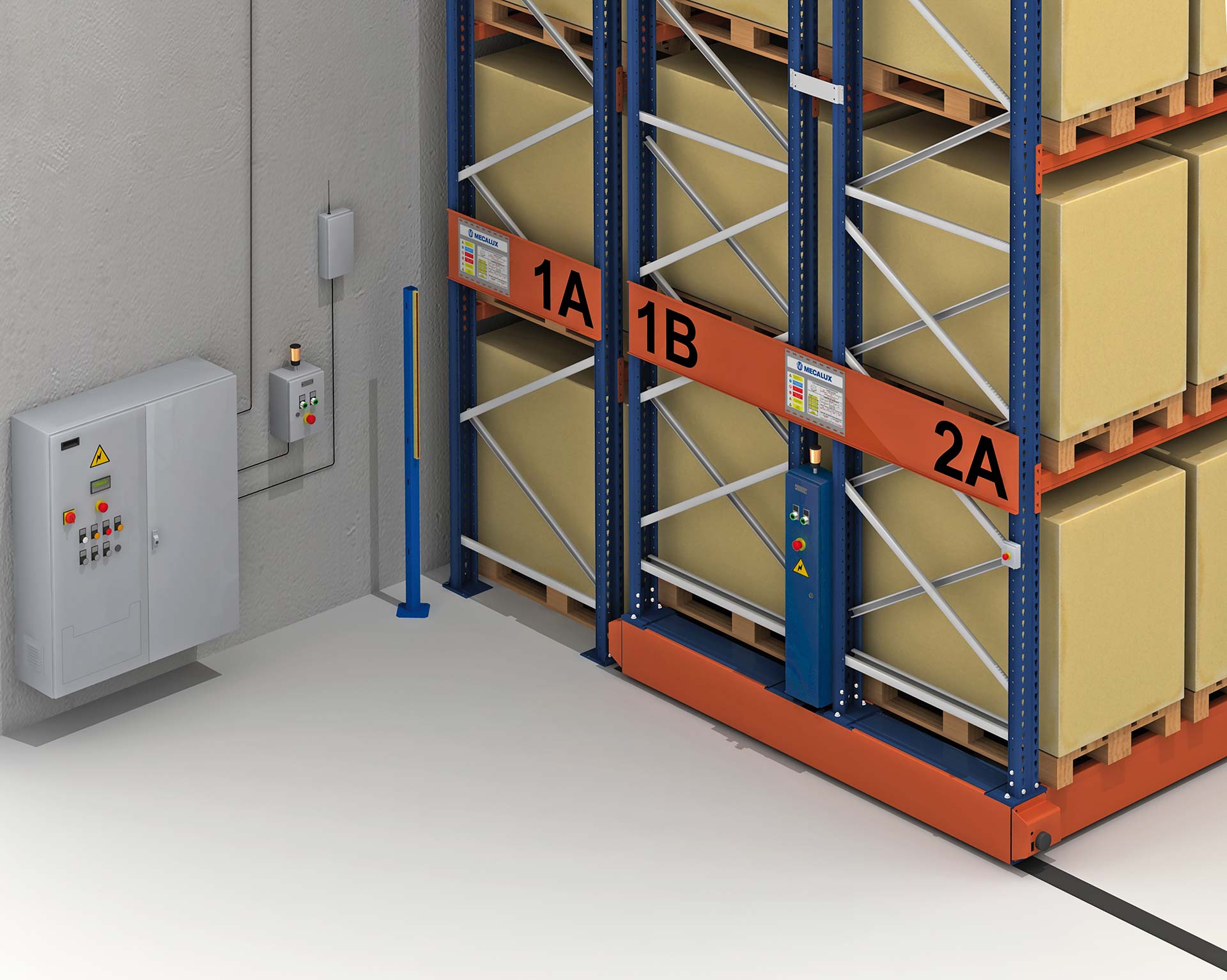

The Movirack system guarantees the safety of the structure thanks to numerous safety components

48ebef64-35dc-7961-a3a3-b059324e465e

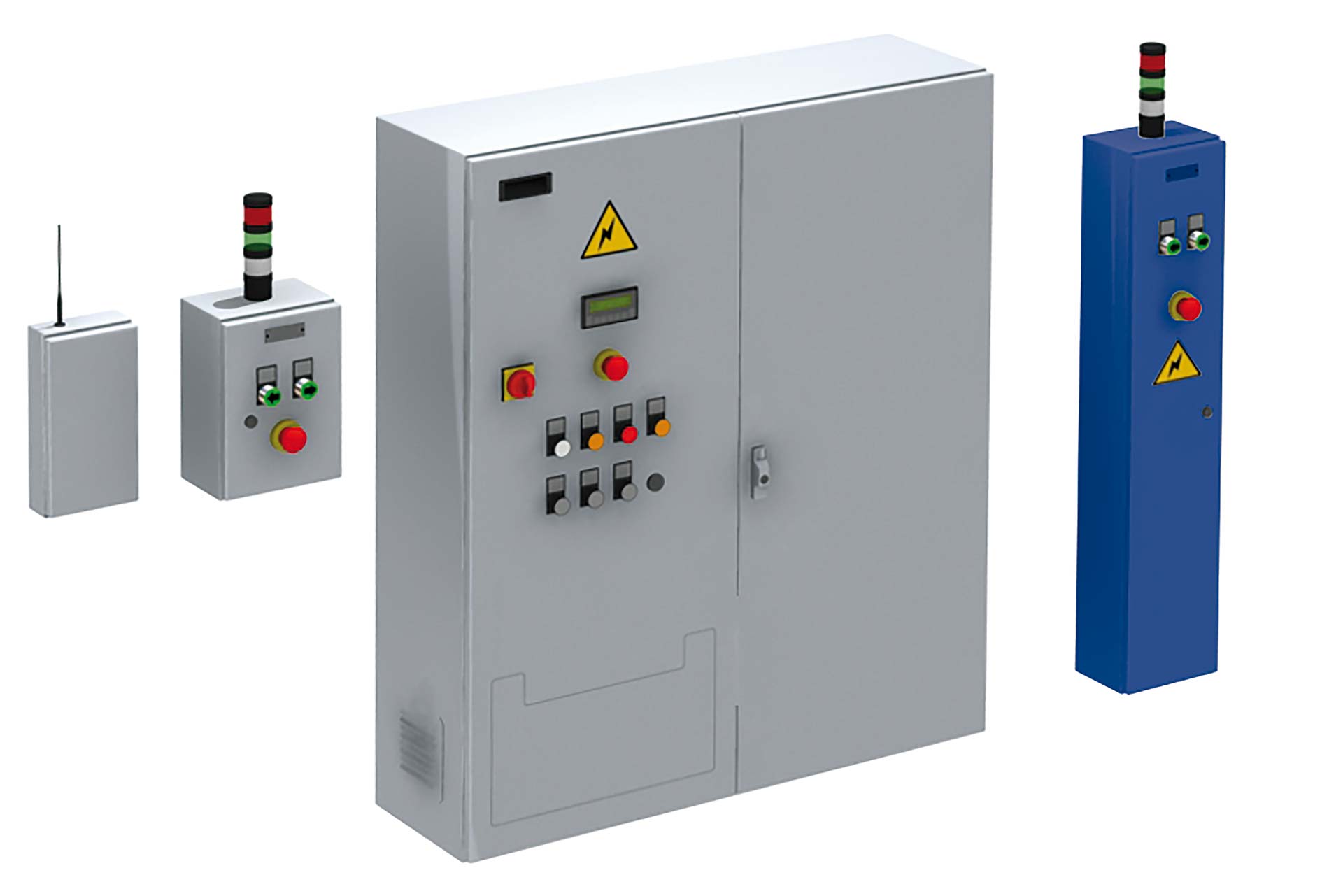

The main electrical cabinet records all commands and movements of the Movirack system

5669e3ef-3d4d-d78e-4017-a26658e8f7f3

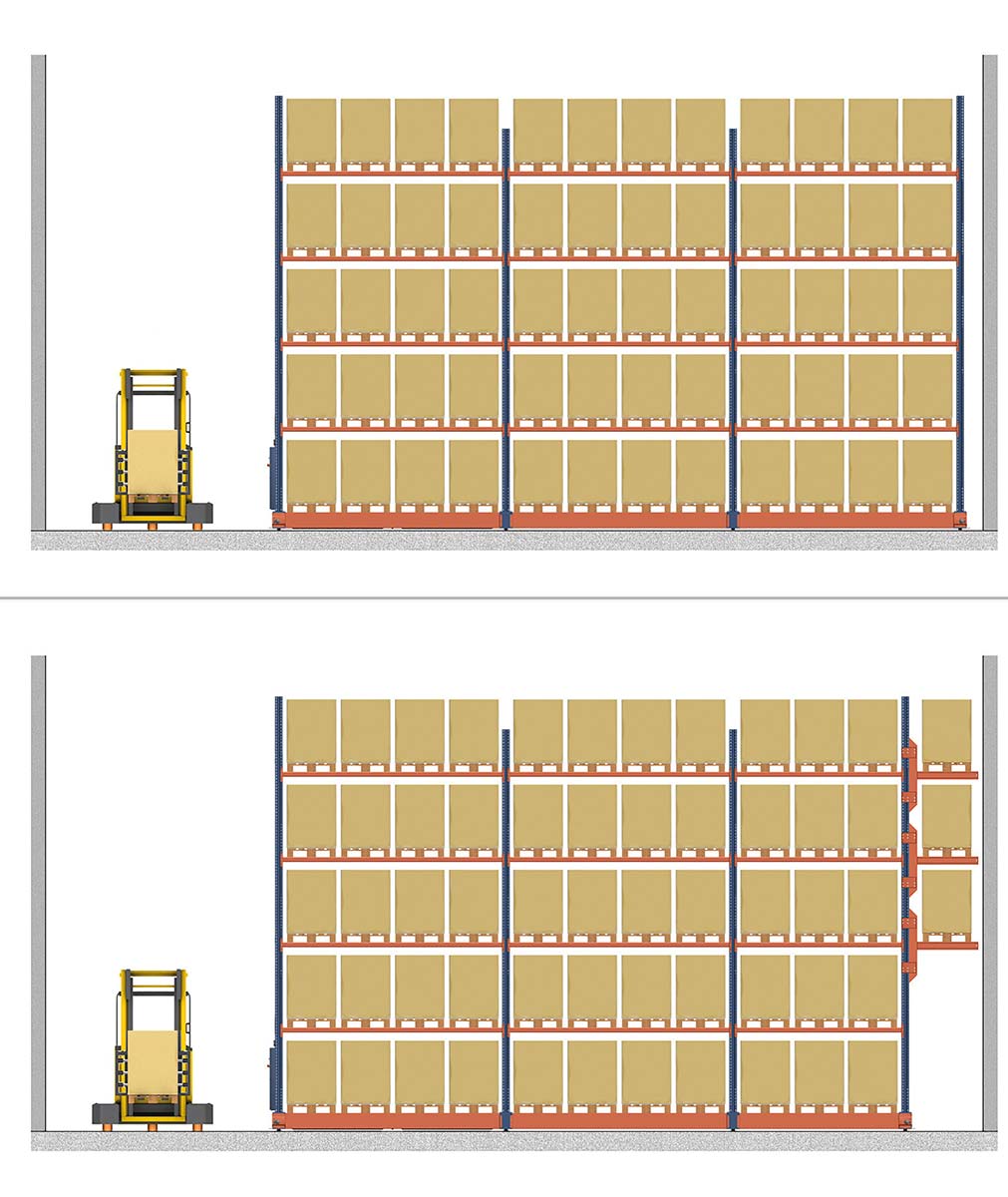

When building this system, a pedestrian underpass can be provided using cantilever construction

e424f077-e5b9-746f-41c4-2d4ce7e7ec6f

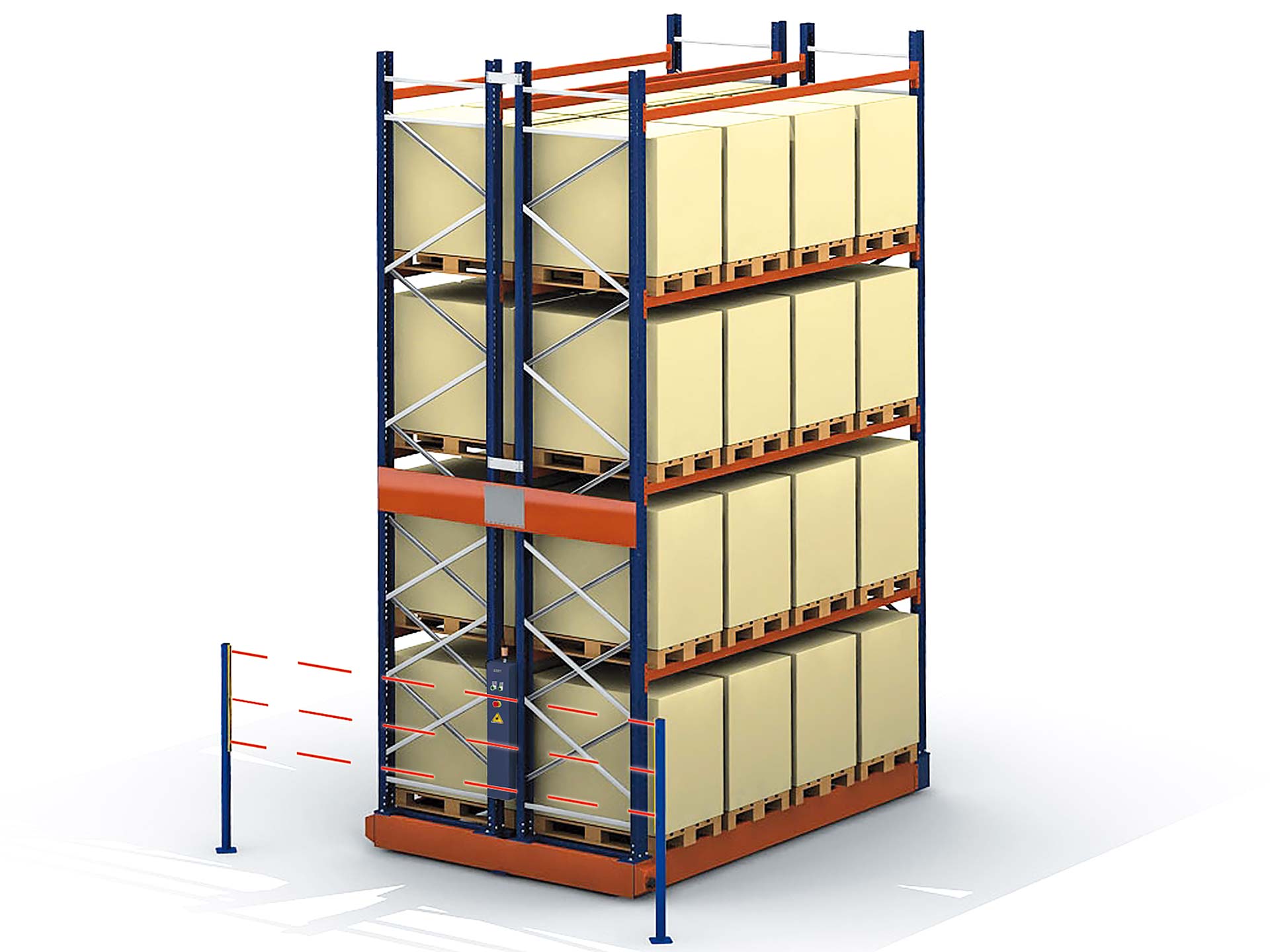

The Movirack system has an external safety barrier to prevent accidents with operators

c7df6b34-061e-ca65-910b-01498c96f528

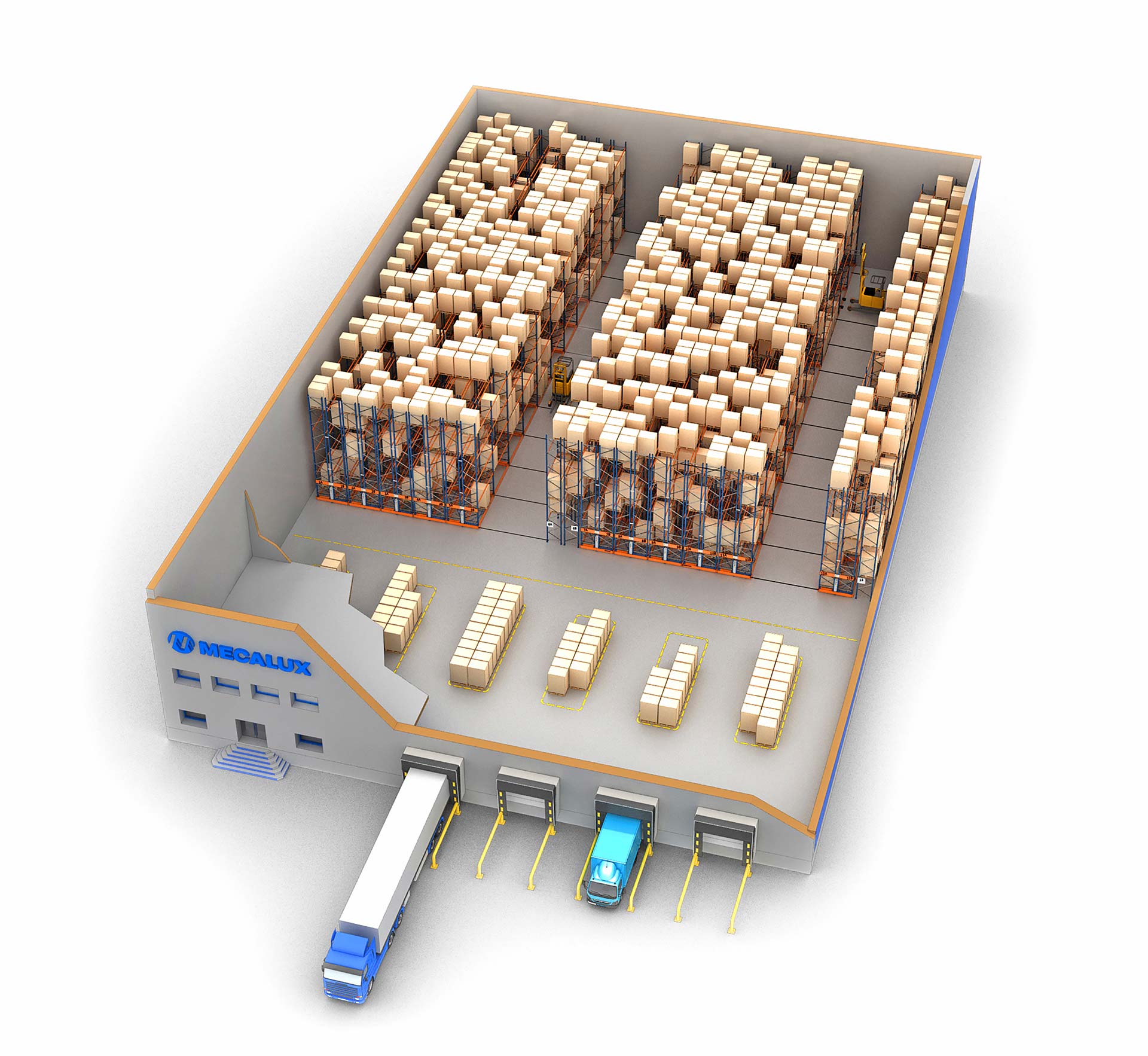

This system can be built with different bays based on the logistics demands of the customer

2c3965c6-58c3-37eb-8449-68d7a3599074

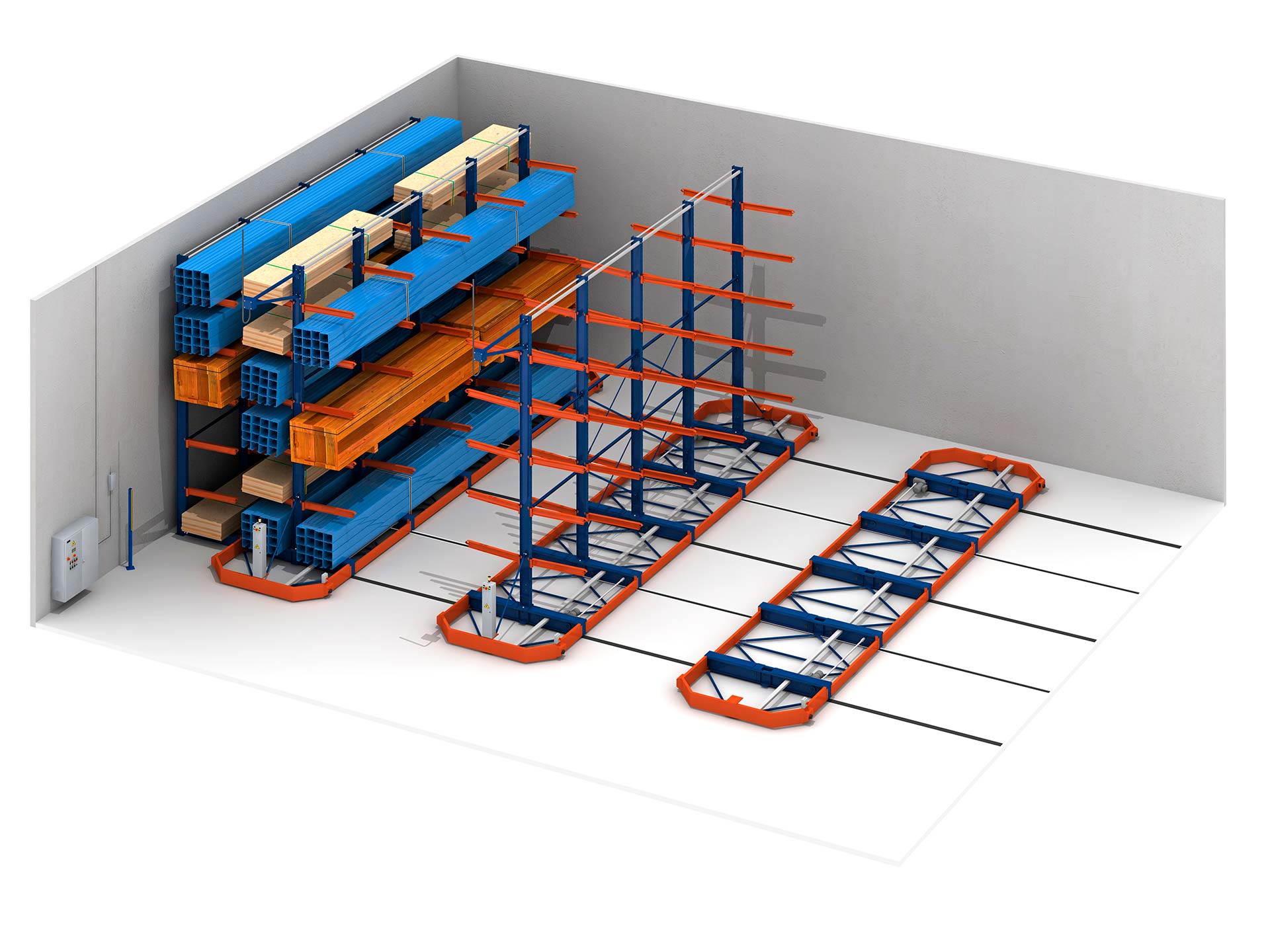

As in pallet racking, Movirack can include cantilever racks to store irregular-shaped products

27ec88de-2862-ee58-8206-9d191c86bc81

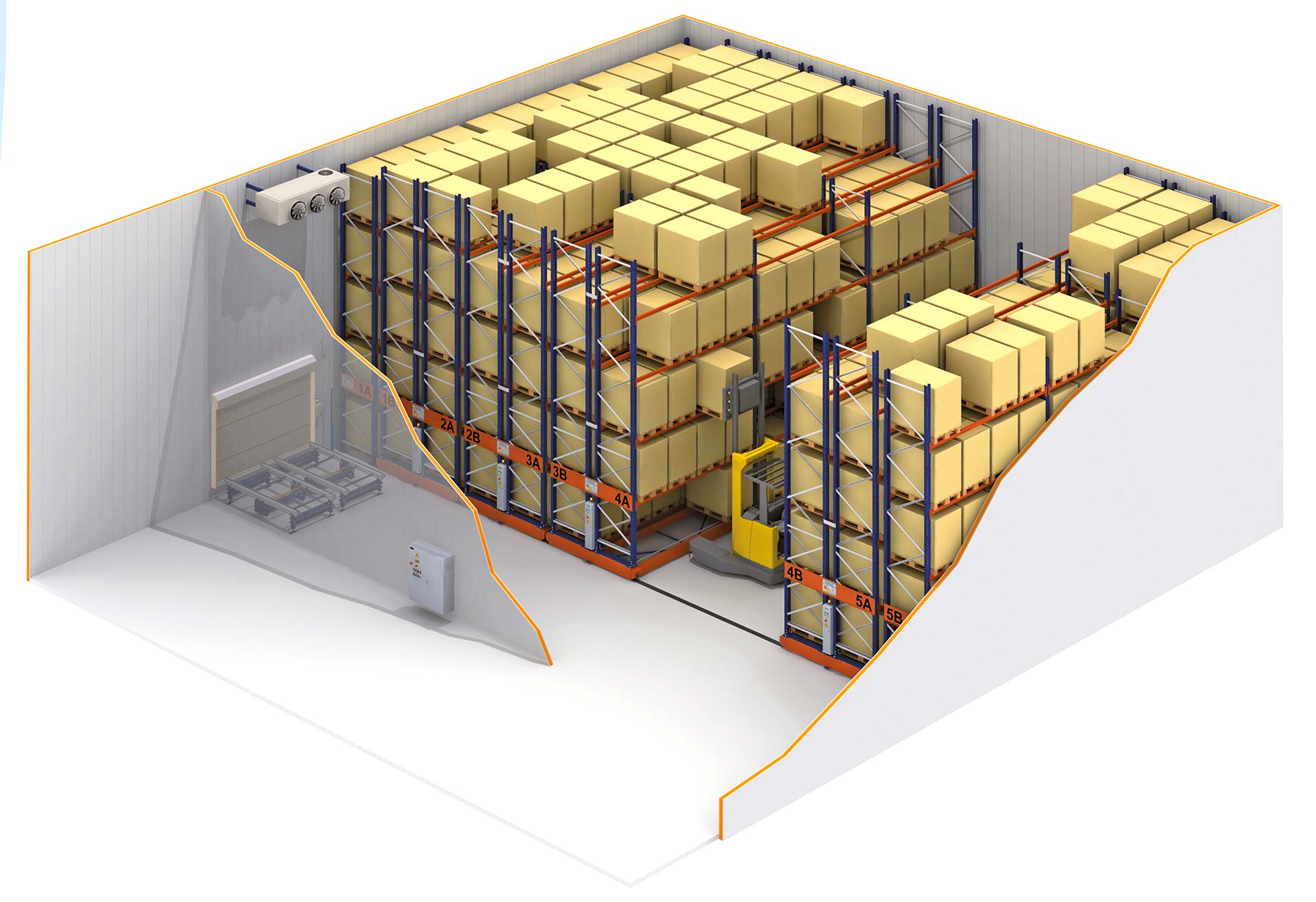

In the case of cold-storage warehouses, mobile pallet racks guarantee maximum storage capacity

8a4b1a77-7c61-cb78-7208-d856edcd3910

Poze
Ilustrații
Videoclipuri
Animații tehnice
Descărcați catalogul

Cu Movirack este posibil să compactați rafturile și să creșteți capacitatea depozitului fără a pierde accesul direct la fiecare palet.

Rafturile sunt așezate pe baze mobile ghidate care se deplasează lateral; astfel, coridoarele sunt eliminate și doar coridorul de lucru este deschis atunci când este necesar. Operatorul este cel care dă ordinul de deschidere automată prin intermediul unei telecomenzi sau, manual, prin apăsarea unui comutator.

Bazele dispun de motoare, elemente de translație și diferite sisteme de securitate care garantează o funcționare sigură și eficientă.

Avantaje

  • Potrivit pentru camere frigorifice, atât pentru refrigerare cât și pentru congelare.
  • Creșterea capacității de depozitare.
  • Eliminarea coridoarelor individuale de acces.
